The LM385MX-1.2 is a precision micro-power voltage reference from Texas Instruments, designed for exceptional stability and reliability for a wide array of electronic applications. This voltage reference device is a staple in the industry, known for its low dynamic impedance and a fixed voltage of 1.2 volts, making it an indispensable component in many circuit designs.

Key Features

• Fixed Output Voltage: 1.2V with high precision.
• Low Dynamic Impedance: Ensures stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
• Low Power: Ideal for battery-powered devices, with minimal power consumption.
• Wide Operating Current: Functions optimally across a broad range of current values.
• Temperature Compensated: Offers a stable output despite fluctuations in temperature, making it suitable for environments with varying thermal conditions.

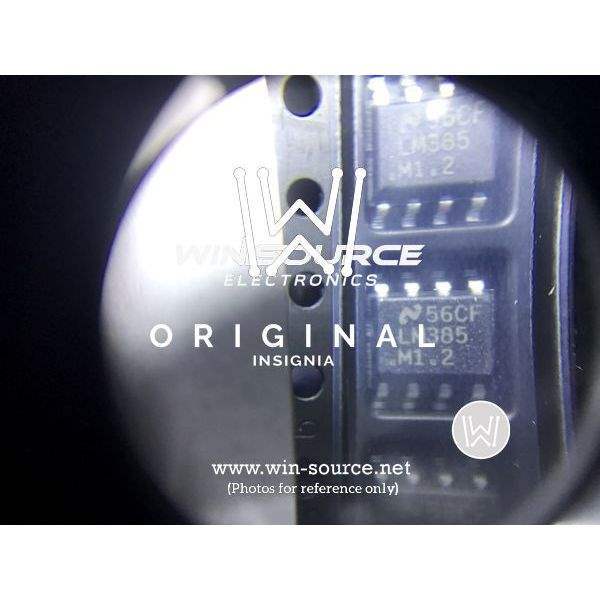

• Small Package Size: Available in an SOIC-8 package, perfect for space-constrained applications.

Applications

The versatility of the LM385MX-1.2 allows it to be used in a multitude of applications. It is particularly well-suited for use in portable, battery-powered devices due to its low power consumption. Additionally, it is commonly found in power supplies, instrumentation, and analog circuits where a stable reference voltage is critical.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality, and the LM385MX-1.2 is no exception. It is designed to meet the stringent requirements of the most demanding applications. Users can expect consistent performance and longevity, making it a reliable choice for both commercial and industrial uses.

Easy Integration

The LM385MX-1.2 is designed for easy implementation into various circuit designs. Its standard package and pinout make it compatible with many existing layouts, simplifying the design process and reducing time to market for products that require a stable voltage reference.
