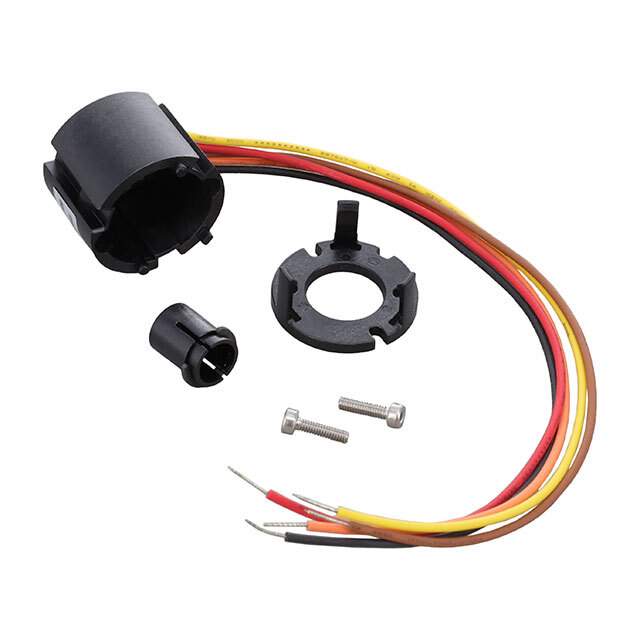

AEAT-601B-F06 Real Image
Same model may have multiple batches, images only for reference.

AEAT-601B-F06

Part No AEAT-601B-F06
Manufacturer Broadcom Limited
Catalog Encoders
Description IC ENCODER MAGNETIC 8BIT 3CH 6MM / Magnetic Encoder Rotary Incremental Right Angle Quadrature Digital Square Wave Screw Mount Cable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series AEAT-60xx
Encoder Type Magnetic
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 256
Operating Supply Voltage 5V
Actuator Type 6mm Dia Round End
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Cable Leads
Win Source Part Number 768291-AEAT-601B-F06
Popularity Medium
Supply and Demand Status Limited
Quantity per package 256
Family Name AEAT-601B
Introduction Date December 03, 2009
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AEAT-601B-F06 CAD Model

Description

The AEAT-601B-F06 is a magnetic encoder that belongs to the electronic components category.

  • Resolution: 256 pulses per revolution
  • Operating Supply Voltage: 5V
  • Output: Quadrature with index (incremental)
  • Actuator Type: 6mm dia round end
