ACPL-W61L-560E Real Image ACPL-W61L-560E real image583
Same model may have multiple batches, images only for reference.

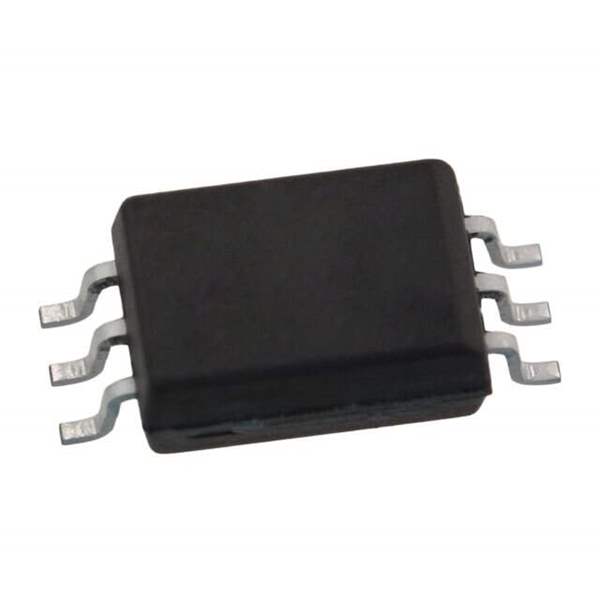

ACPL-W61L-560E Real Image ACPL-W61L-560E real image583
ACPL-W61L-560E Real Image ACPL-W61L-560E real image583
Same model may have multiple batches, images only for reference.

ACPL-W61L-560E

Part No ACPL-W61L-560E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 6-Pin SSO T/R / OPTOISO 5KV PUSH PULL 6SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 10mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise and Fall Time 12ns, 12ns
Forward Voltage 1.3V
Continuous forward current- Max 8mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Case / Package 6-SO Stretched
Win Source Part Number 129143-ACPL-W61L-560E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name ACPL-W61L
Introduction Date September 22, 2009
ECCN EAR99
Country of Origin Singapore, Philippines
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ACPL-W61L-560E CAD Model

Description

Features and Benefits

  • Exceptional response time for high-speed data transmission.
  • Operates over a wide supply voltage range.
  • Enhanced signal integrity with optimized coupling factor.

Applications

  • Data communication systems.
  • Microprocessor system interfaces.
  • Signal isolation in noisy environments.

The ACPL-W61L-560E ensures reliable and accurate data transfer, meeting the needs of demanding communication applications.
