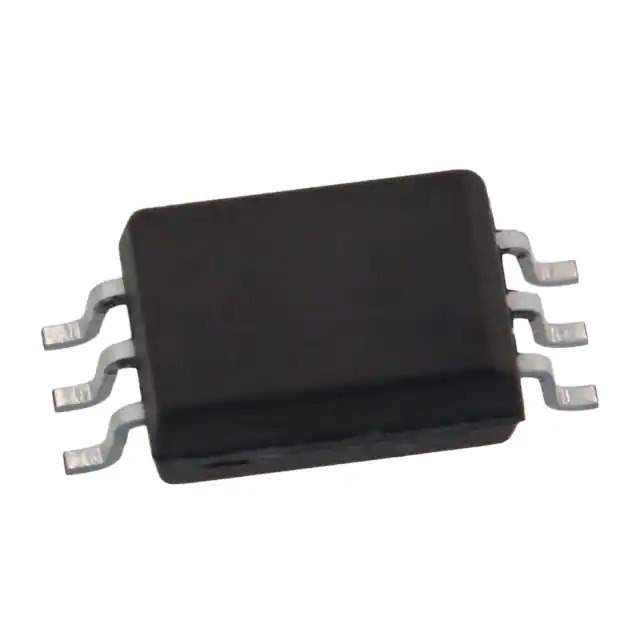

Same model may have multiple batches, images only for reference.

ACPL-W483-560E

Name: ACPL-W483-560E
Brand: Broadcom Limited
SKU: 848209
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACPL-W483-560E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Logic Output
Description	OPTOISO 5KV PUSH PULL 6SO / Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 30kV/μs CMTI 6-SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Logic Output Optoisolators
Mfr	Broadcom Limited
Package	Tape & Reel
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	30kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	50 mA
Propagation Delay tpLH / tpHL (Max)	120ns, 120ns
Rise / Fall Time (Typ)	6ns, 6ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	4.5V ~ 30V
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SO
Base Product Number	ACPL-W483
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	848209-ACPL-W483-560E
Ultra Librarian 3D Model	Ultra Librarian ACPL-W483-560E CAD Model

Description

The ACPL-W483-560E is a logic output optoisolator with a push-pull, totem pole output type by Broadcom Limited.

Output Type: Logic
Input Type: DC
Current Transfer Ratio (Min): 125% @ 10mA
Voltage - Isolation: 5000Vrms
Voltage - Forward (Vf) (Typ): 1.5V
Propagation Delay tpLH / tpHL (Max): 120ns
Rise / Fall Time (Typ): 6ns, 6ns
Package / Case: 6-SOIC
Operating Temperature: -40°C ~ 105°C
