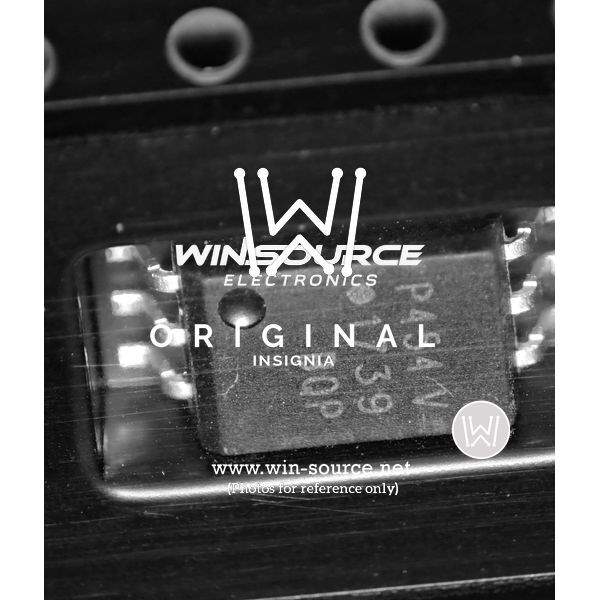

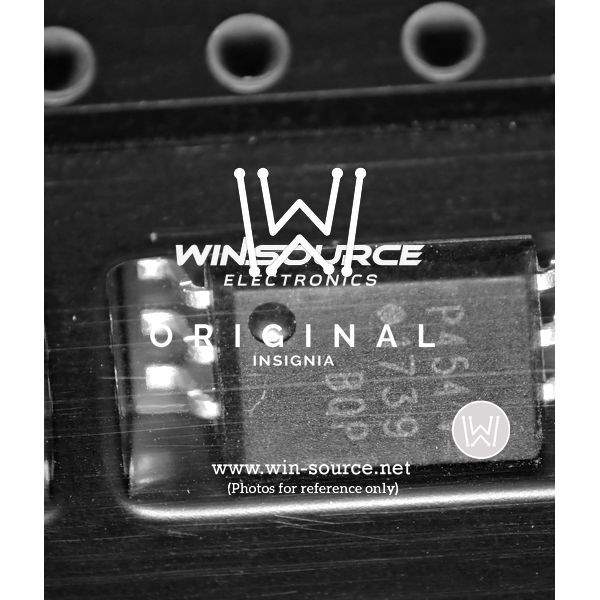

ACPL-P454-560E Real Image ACPL-P454-560E real image17070 ACPL-P454-560E real image17071
Same model may have multiple batches, images only for reference.
ACPL-P454-560E Real Image ACPL-P454-560E real image17070 ACPL-P454-560E real image17071
ACPL-P454-560E Real Image ACPL-P454-560E real image17070 ACPL-P454-560E real image17071
Same model may have multiple batches, images only for reference.

ACPL-P454-560E

Part No ACPL-P454-560E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description High CMR High Speed Optocoupler Surface Mountable in 6-pin stretched SO6 | OPTOISOLATOR 3.75KV TRANS 6SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tape and Reel
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Minimum) 25% at 16mA
Current Transfer Ratio (Maximum) 60% at 16mA
Turn On / Turn Off Time 200ns, 300ns
Input Type DC
Output Type Transistor
Maximum Output Voltage 20V
Current - Output / Channel 8mA
Voltage - Forward (Vf) 1.5V
Current - DC Forward (If) (Maximum) 25mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Style SMD
Manufacturer Package 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SO Stretched
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1135433-ACPL-P454-560E
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACPL-P454-560E CAD Model

Description

The ACPL-P454-560E from Broadcom Limited is an isolator component that comes in tape and reel packaging.

  • Packaging: Tape and Reel
  • Mounting Style: SMD
  • Output Type: Transistor
  • Input Type: DC
  • Current - Output / Channel: 8mA
  • Voltage - Isolation: 3750Vrms
  • Supplier Device Package: 6-SO stretched
  • Temperature Range - Operating: -55°C ~ 100°C
  • Maximum Output Voltage: 20V
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Current - DC Forward (If) (maximum): 25mA
  • Current Transfer Ratio (minimum): 25% @ 16mA
  • Current Transfer Ratio (maximum): 60% @ 16mA
  • Vce Saturation (maximum): Not specified
  • Rise / Fall Time: Not specified
  • Turn On / Turn Off Time: 200ns, 300ns
  • Voltage - Forward (Vf): 1.5V
