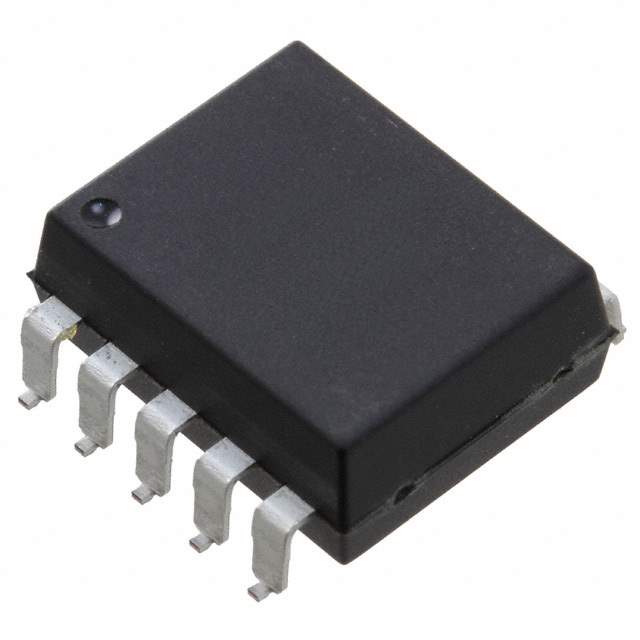

ACNV4506-500E

Part No ACNV4506-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 7.5KV OPEN COLL 10DIP GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel package
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Minimum) 30kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Output Current per Channel 15mA
Propagation Delay tpLH / tpHL (Maximum) 550ns, 400ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Maximum) 25mA
Operating Supply Voltage 4.5 V ~ 30 V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Package 10-SMD, Gull Wing
Manufacturer Package 10-DIP Gull Wing
Win Source Part Number 766923-ACNV4506-500E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name ACNV4506
Introduction Date November 08, 2010
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ACNV4506-500E CAD Model

Description

The Broadcom Limited 766923-ACNV4506-500E is an isolator that is used in various applications.

  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
  • Input Type: DC
  • Output Type: Open Collector, Schottky Clamped
  • Operating Supply Voltage: 4.5V to 30V
  • Voltage Isolation: 7500Vrms
  • Propagation Delay: 550ns, 400ns
  • Common Mode Transient Immunity: 30kV/μs
