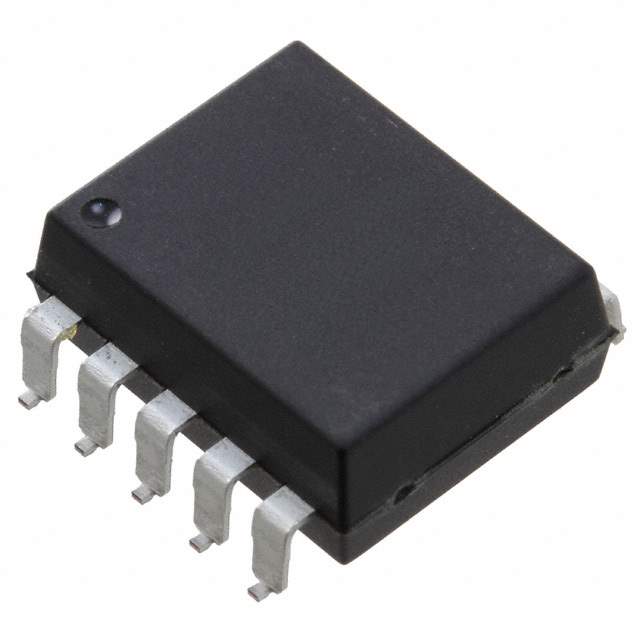

ACNV2601-300E

Part No ACNV2601-300E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description High Insulation Voltage 10 MBd Digital Optocoupler | OPTOISO 7.5KV OPEN COLL 10DIP GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Minimum) 20kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 50mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Maximum) 80ns, 80ns
Rise / Fall Time 25ns, 10ns
Voltage - Forward (Vf) 1.64V
Current - DC Forward (If) (Maximum) 20mA
Supply Voltage (V) 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 10-SMD, Gull Wing
Supplier Device Package 10-DIP Gull Wing
Manufacturer Pack Quantity 175
MSL Level 3 (168 Hours)
Win Source Part Number 1135293-ACNV2601-300E
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACNV2601-300E CAD Model

Description

The Broadcom Limited ACNV2601-300E is an electronic component product that comes in a tube package.

  • Mounting Style: SMD
  • Output Type: Open collector, Schottky clamped
  • Input Type: DC
  • Data Rate: 10MBd
  • Current-Output/Channel: 50mA
  • Voltage-Isolation: 7500Vrms
  • Input Side 1: 1
  • Input Side 2: 0
  • Product Category: Isolator
  • Supplier Device Package: 10-DIP gull-wing
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 175
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay tpLH / tpHL: 80ns, 80ns
