Same model may have multiple batches, images only for reference.

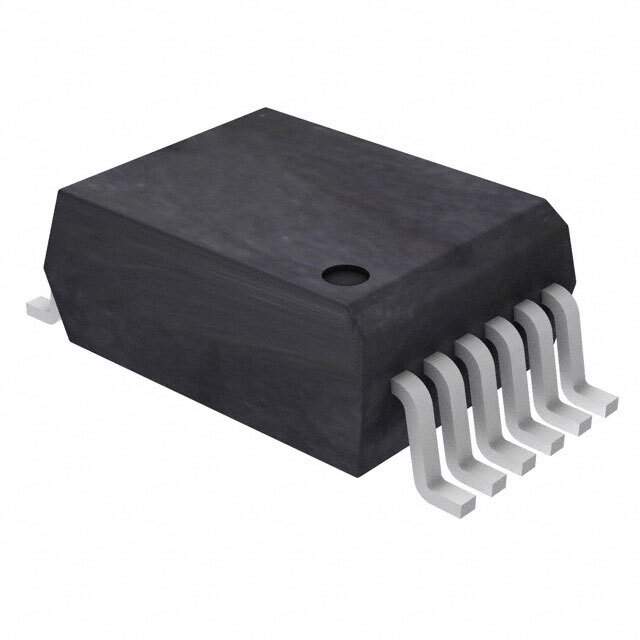

ACFL-6212T-500E Real Image
Same model may have multiple batches, images only for reference.

ACFL-6212T-500E

Part No ACFL-6212T-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV 2CH PSH PULL SO12
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 29 Weeks
Features Logic Output Optoisolator 15MBd Push-Pull, Totem Pole 5000Vrms 2 Channel 15kV/µs CMTI 12-SO
Manufacturer Broadcom Limited
Series Automotive, AEC-Q100, R²Coupler™
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 12-BSOP (0.295", 7.50mm Width)
Case / Package 12-SO
Family Name ACFL-6212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859247-ACFL-6212T-500E
Ultra Librarian 3D Model Ultra Librarian ACFL-6212T-500E CAD Model

Description

The Broadcom Limited 859247-ACFL-6212T-500E is an electronic component that is part of the ACFL-6212 series and is designed for automotive use.

  • Type: Logic output optoisolator
  • Output: Push-pull totem pole
  • Data Rate: 15MBd
  • Channels: 2
  • Common-Mode Transient Immunity (Maximum): 15kV/µs
  • CMTI: 12-SO
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mountable
  • Package: 12-BSOP
  • Package Size: Reels of 1000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 29 weeks
  • REACH: Unaffected
  • HTSUS: 8541.40.8000
