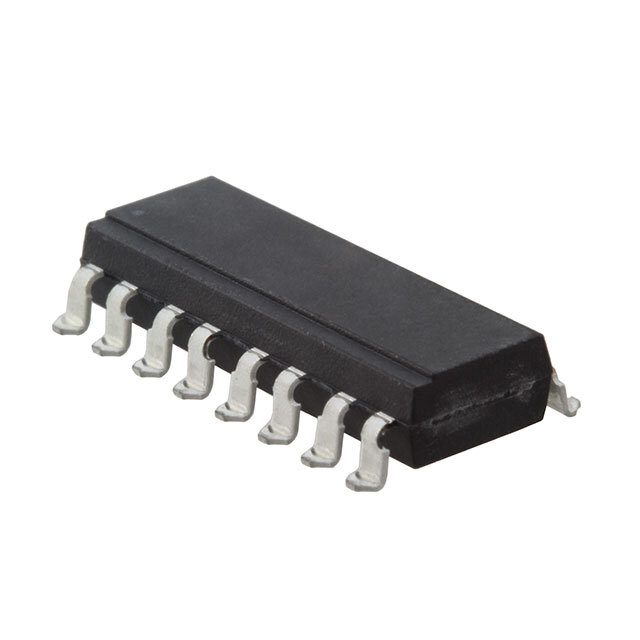

Same model may have multiple batches, images only for reference.
5962-8876903FC Broadcom Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5962-8876903FC

Part No 5962-8876903FC
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 1.5KV PUSH PULL 16FLATPK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Channels 4
Inputs - Side 1/Side 2 4/0
Voltage - Isolation 1500VDC
Common Mode Transient Immunity (Min) 1kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 15 mA
Data Rate 5MBd
Propagation Delay tpLH / tpHL (Max) 350ns, 350ns
Rise / Fall Time (Typ) 45ns, 10ns
Voltage - Forward (Vf) (Typ) 1.3V
Current - DC Forward (If) (Max) 8mA
Voltage - Supply 4.5V ~ 20V
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Case / Package 16-Flatpack
Supplier Device Package 16-Flatpack
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1502471-5962-8876903FC
Ultra Librarian 3D Model Ultra Librarian 5962-8876903FC CAD Model

Description

N
