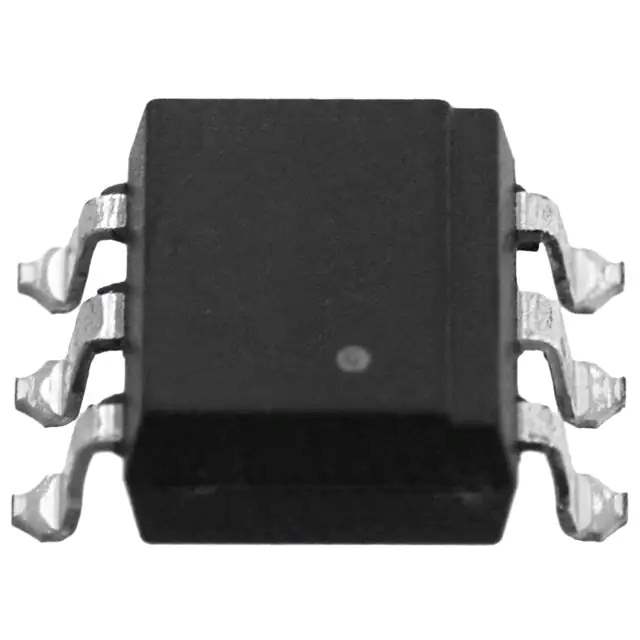

4N46-500E Real Image
Same model may have multiple batches, images only for reference.

4N46-500E

Part No 4N46-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV DARL W/BASE 6SMD
Datasheet
4N46-500E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Broadcom Limited
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 200% @ 10mA
Current Transfer Ratio (Max) 1000% @ 10mA
Turn On / Turn Off Time (Typ) 5µs, 150µs
Input Type DC
Output Type Darlington with Base
Voltage - Output (Max) 20V
Current - Output / Channel 60mA
Voltage - Forward (Vf) (Typ) 1.4V
Current - DC Forward (If) (Max) 20 mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number 4N46
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 856215-4N46-500E
Ultra Librarian 3D Model Ultra Librarian 4N46-500E CAD Model

Description

The 856215-4N46-500E is an optoisolator with a transistor and photovoltaic output from Broadcom Limited.

  • Application: Isolator
  • Output Type: Darlington
  • Input Type: DC
  • Maximum Forward Current: 20mA
  • Forward Voltage: 1.4V
  • Current Transfer Ratio: 200% @ 10mA
  • Maximum Voltage Output: 20V
  • Packaging: Tape and reel
  • Standard Package: 1,000 pieces
  • Mounting: Surface mountable
  • Package: 6-SMD, gull wing
  • Temperature Range: -40°C to 85°C
  • REACH: Not affected
