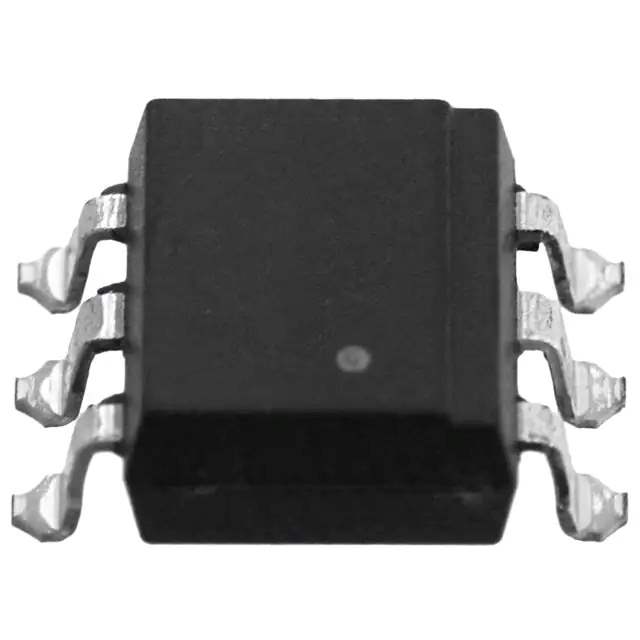

4N46-300E

Name: 4N46-300E
Brand: Broadcom Limited
SKU: 856214
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	4N46-300E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 3.75KV DARL W/BASE 6SMD
Datasheet	4N46-300E Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Broadcom Limited
Package	Tube
Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	200% @ 10mA
Current Transfer Ratio (Max)	1000% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 150µs
Input Type	DC
Output Type	Darlington with Base
Voltage - Output (Max)	20V
Current - Output / Channel	60mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Base Product Number	4N46
Standard Package	50 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	856214-4N46-300E
Ultra Librarian 3D Model	Ultra Librarian 4N46-300E CAD Model

Description

The 4N46-300E is an optoisolator manufactured by Broadcom Limited.

Category: Transistor photovoltaic output optoisolators
Package: Tube
Package Quantity: 50 pieces
Mounting: Surface mount
Package: 6-SMD, Gull Wing
Output Type: Darlington
Input Type: DC
Current Transfer Ratio: 200% @ 10mA
Voltage Isolation: 3750Vrms
Status: Obsolete
MSL Level: 1 (unlimited)
