Same model may have multiple batches, images only for reference.

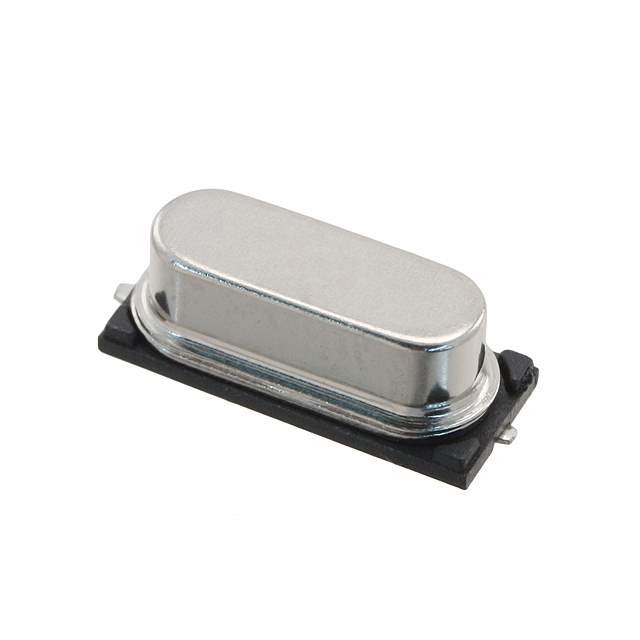

FC4SDCBMF25.0-T1 Real Image
Same model may have multiple batches, images only for reference.

FC4SDCBMF25.0-T1

Part No FC4SDCBMF25.0-T1
Manufacturer Fox Electronics
Catalog Oscillators
Datasheet
FC4SDCBMF25.0-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Fox Electronics
Series HC49SDLF
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.461" L x 0.197" W (11.70mm x 5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1315987-FC4SDCBMF25.0-T1
Ultra Librarian 3D Model Ultra Librarian FC4SDCBMF25.0-T1 CAD Model

Description

The HC49SDLF series MHz crystal is a high-quality crystal oscillator that provides a frequency of 25 MHz. Bold the manufacturer HC49SDLF series.

  • Frequency: 25 MHz
  • Load Capacitance: 20pF
  • ESR: 30 Ohms
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • Operating Mode: Fundamental
  • Temperature Range: -20°C to 70°C
  • Package/Case: HC-49/US
  • Mounting: SMD (SMT)
  • Dimension: 0.461" L x 0.197" W (11.70mm x 5.00mm)
