Same model may have multiple batches, images only for reference.

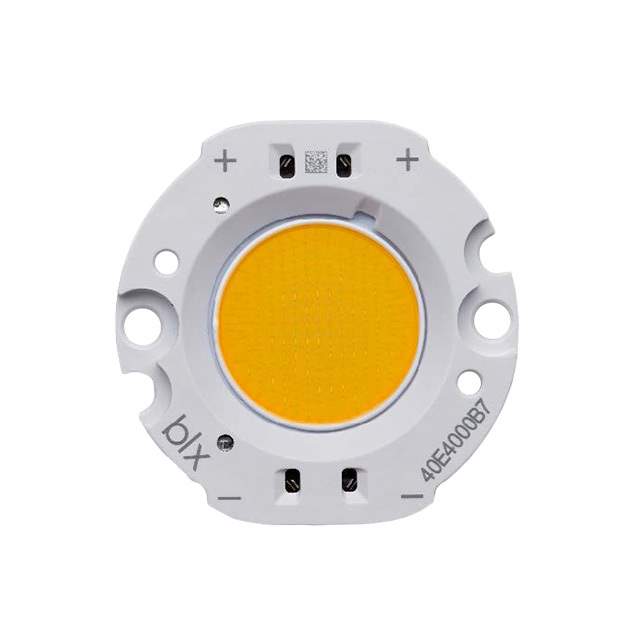

BXRC-40A4001-C-73-SE Real Image
Same model may have multiple batches, images only for reference.

BXRC-40A4001-C-73-SE

Part No BXRC-40A4001-C-73-SE
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description VERO SE 18C NEUTRAL WHITE LED AR / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Round
Datasheet
BXRC-40A4001-C-73-SE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series Vero® SE 18 Array
Package Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Round
Luminous Flux @ Current/Temperature 4984lm (Typ)
Current - Test 1.17A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34.1V
Lumens/Watt @ Current - Test 125 lm/W
Current - Max 2.34A
CRI (Color Rendering Index) 93 (Typ)
Viewing Angle 120°
Dimension 36.20mm Dia
Height 3.60mm
Light Emitting Surface (LES) 18.40mm Dia
Lens Type Flat
Base Product Number BXRC-40
ECCN EAR99
HTSUS 8539.52.0091
Standard Package 100
Win Source Part Number 1154363-BXRC-40A4001-C-73-SE
Ultra Librarian 3D Model Ultra Librarian BXRC-40A4001-C-73-SE CAD Model

Description

The 1154363-BXRC-40A4001-C-73-SE from Bridgelux is a Vero® SE 18 Array series product.

  • Light Color: White and Neutral
  • Package: Tray
  • Standard Package: 100
  • Current - Max: 2.34A
  • Configuration: Round
  • Viewing Angle: 120°
  • Voltage - Forward (Vf) (Typ): 34.1V
  • Lumens/Watt @ Current - Test: 125 lm/W
