Same model may have multiple batches, images only for reference.

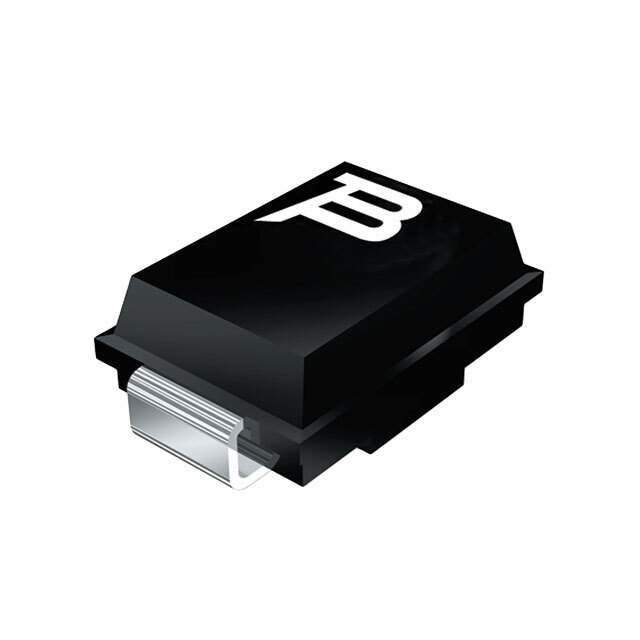

TISP5110H3BJR-S Real Image
Same model may have multiple batches, images only for reference.

TISP5110H3BJR-S

Part No TISP5110H3BJR-S
Manufacturer Bourns Inc.
Catalog TVS - Thyristors
Description FORWARD-CONDUCTING UNIDIRECTIONAL THYRISTOR OVERVOLTAGE PROTECTORS | THYRISTOR 80V 300A DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Tape and Reel
Voltage - Breakover 110V
Voltage - Off State 80V
Voltage - On State 3V
Current - Peak Pulse (8/20μs) 300A
Current - Peak Pulse (10/1000μs) 100A
Current - Hold (Ih) 600mA
Number of Elements 1
Capacitance 285pF
Mounting Style SMD
Manufacturer Package DO-214AA, SMB
Family Part Number TISP511
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1267530-TISP5110H3BJR-S
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TISP5110H3BJR-S CAD Model

Description

The TISP5110H3BJR-S is a surface-mountable circuit protection device manufactured by Bourns Inc.

  • Package: DO-214AA, SMB
  • Packaging: Tape and reel
  • Capacitance: 285pF
  • Peak Pulse Current: 100A (10/1000μs) and 300A (8/20μs)
  • Breakdown Voltage: 110V
  • Off-State Voltage: 80V
  • Core: Wirewound drum core with a shielded design
  • Applications: Automotive and telecommunications
  • Compliance: AEC-Q101 compliant
  • Supply and Demand Status: High
  • Popularity: Medium
