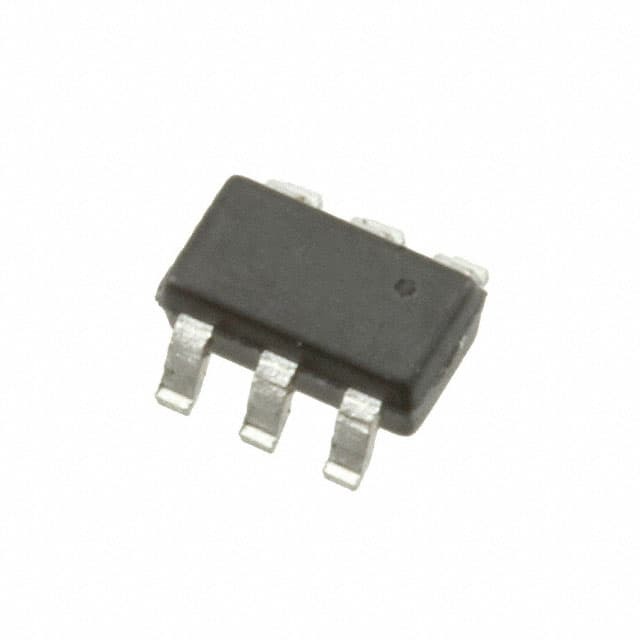

Same model may have multiple batches, images only for reference.
TISP4G024L1WR-S
Same model may have multiple batches, images only for reference.

TISP4G024L1WR-S

Part No TISP4G024L1WR-S
Manufacturer Bourns Inc.
Catalog TVS - Thyristors
Description THYRISTOR 24V 30A SOT23-6 / 24V Off-State 30 A Ipp TVS Thyristor SOT-23-6
Datasheet
TISP4G024L1WR-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Thyristors
Mfr Bourns Inc.
Package Tape & Reel
Product Status Obsolete
Voltage - Breakover 30V
Voltage - Off State 24V
Current - Peak Pulse (8/20µs) 30 A
Current - Hold (Ih) 40 mA
Number of Elements 1
Capacitance 3pF
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number TISP4G
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 899640-TISP4G024L1WR-S
Ultra Librarian 3D Model Ultra Librarian TISP4G024L1WR-S CAD Model

Description

The TISP4G024L1WR-S is a thyristor-type TVS diode designed for circuit protection against transient voltage events.

  • Voltage Off State: 24V
  • Voltage Breakover: 30V
  • Capacitance: 3pF
  • Package: SOT-23-6
  • Mounting Type: Surface Mountable
  • Peak Pulse Current: 30A
  • Hold Current: 40mA
  • Manufacturer: Bourns Inc.
