Same model may have multiple batches, images only for reference.

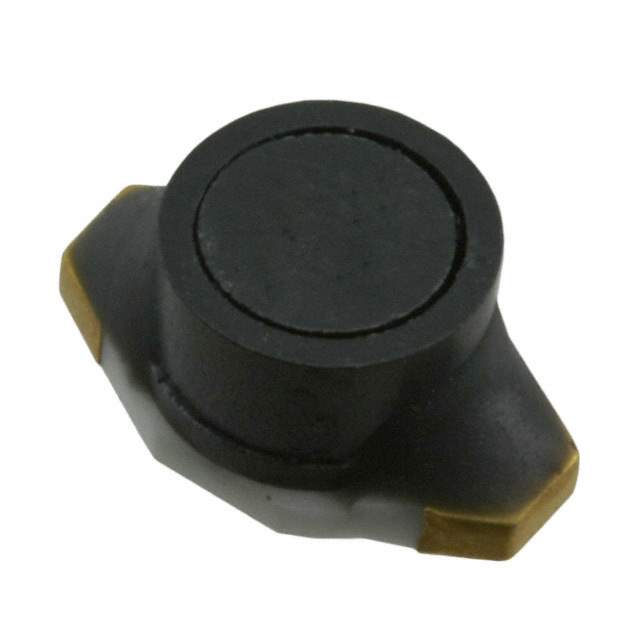

SRR6603-2R2ML Real Image
Same model may have multiple batches, images only for reference.

SRR6603-2R2ML

Part No SRR6603-2R2ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Shielded Power Inductors
Datasheet
SRR6603-2R2ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRR6603
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.8A
Current - Saturation 920mA
Shielding Shielded
DC Resistance (DCR) 50 mOhm Max
Q @ Freq 40 @ 200kHz
Frequency - Self Resonant 120MHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.260" L x 0.173" W (6.60mm x 4.40mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Win Source Part Number 1258845-SRR6603-2R2ML
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SRR6603
Introduction Date April 09, 2003
ECCN EAR99
Country of Origin Singapore
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SRR6603-2R2ML CAD Model

Description

The SRR6603-2R2ML is a nonstandard wirewound inductor manufactured by Bourns Inc. It has a ferrite core material and an inductance of 2.2μH with a tolerance of ±20%.

  • Inductor Type: Wirewound
  • Core Material: Ferrite
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Current Rating: 1.8A
  • Saturation Current: 920mA
  • Q @ Freq: 40 @ 200kHz
  • Self-Resonant Frequency: 120MHz
  • Mounting: Surface Mount (SMD)
  • Size: 0.260" L x 0.173" W (6.60mm x 4.40mm)
  • Series: SRR6603
  • Applications: Power Supplies, Filters, DC-DC Converters
  • Operating Temperature: -55°C ~ 125°C
