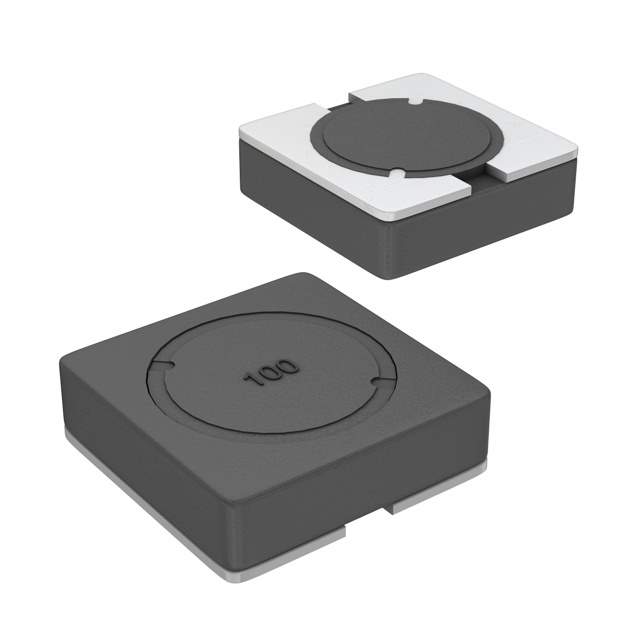

Same model may have multiple batches, images only for reference.

SRR5018-6R2Y

Name: SRR5018-6R2Y
Brand: Bourns Inc.
SKU: 1157113
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRR5018-6R2Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 6.2UH 1.45A 80MOHM SMD / 6.2 µH Shielded Drum Core, Wirewound Inductor 1.45 A 80mOhm Max Nonstandard
Datasheet	SRR5018-6R2Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR5018
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.2 µH
Tolerance	±30%
Current Rating (Amps)	1.45 A
Current - Saturation (Isat)	1.6A
Shielding	Shielded
DC Resistance (DCR)	80mOhm Max
Q @ Freq	7.5 @ 7.96MHz
Frequency - Self Resonant	51MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRR5018
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRR5018-6R2YTR,SRR50186R2Y,-SRR5018-6R2YCT,SRR5018-6R2YCT,-SRR5018-6R2Y,SRR5018-6R2Y-ND,-SRR5018-6R2YTR,-SRR5018-6R2Y-ND
Standard Package	500
Win Source Part Number	1157113-SRR5018-6R2Y
Ultra Librarian 3D Model	Ultra Librarian SRR5018-6R2Y CAD Model

Alternative Products

Description

The SRR5018 series from Bourns Inc. is a drum core, wirewound inductor that is shielded and has a tolerance of ±30%.

Inductance: 6.2 μH
DC Resistance (DCR): 80mOhm Max
Q @ Freq: 7.5 @ 7.96MHz
Frequency of Self-Resonant: 51MHz
Package/Case: Nonstandard
Height Seated (Max): 0.079" (2.00mm)
Mounting Type: SMD (SMT)
Temperature Range: -40°C ~ 125°C
Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
Current Rating: 1.45 A
Ideal for: Use in electronic devices that require high power inductors
