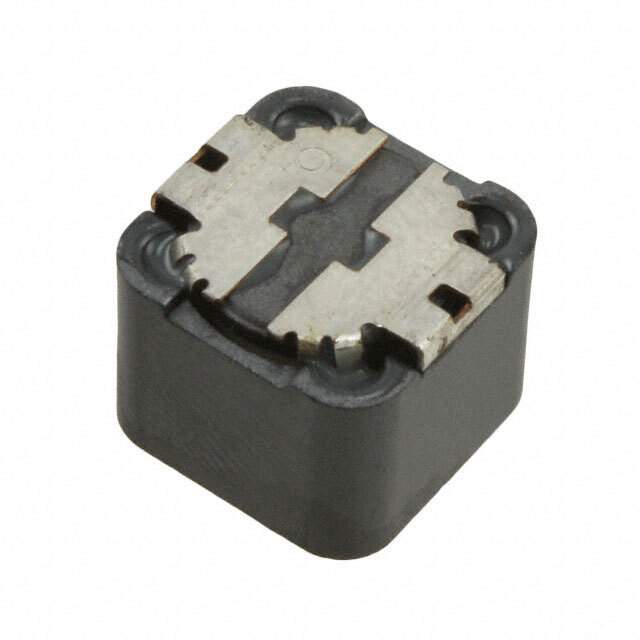

SRR1210-102M Real Image
Same model may have multiple batches, images only for reference.

SRR1210-102M

Part No SRR1210-102M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1MH 750MA 1.65 OHM SMD / 1 mH Shielded Drum Core, Wirewound Inductor 750 mA 1.65Ohm Max Nonstandard
Datasheet
SRR1210-102M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1210
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 mH
Tolerance ±20%
Current Rating (Amps) 750 mA
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 1.65Ohm Max
Q @ Freq 22 @ 796kHz
Frequency - Self Resonant 850kHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names SRR1210-102M-ND,SRR1210-102MTR,SRR1210102M,SRR1210-102MCT,SRR1210-102MDKR
Standard Package 250
Win Source Part Number 1159985-SRR1210-102M
Ultra Librarian 3D Model Ultra Librarian SRR1210-102M CAD Model

Description

The SRR1210-102M is a drum core, wirewound inductor from Bourns Inc.

  • Part: SRR1210-102M
  • Manufacturer: Bourns Inc.
  • Type: Drum core, wirewound inductor
  • Inductance: 1 mH
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.65Ohm Max
  • Q @ Freq: 22 @ 796kHz
  • Frequency Self-Resonant: 850kHz
  • Shielded: Yes
  • Package: Tape & Reel
  • Height - Seated (Max): 0.394" (10.00mm)
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Current Rating (Amps): 750 mA
  • Operating Temperature: -40°C ~ 125°C
