Same model may have multiple batches, images only for reference.

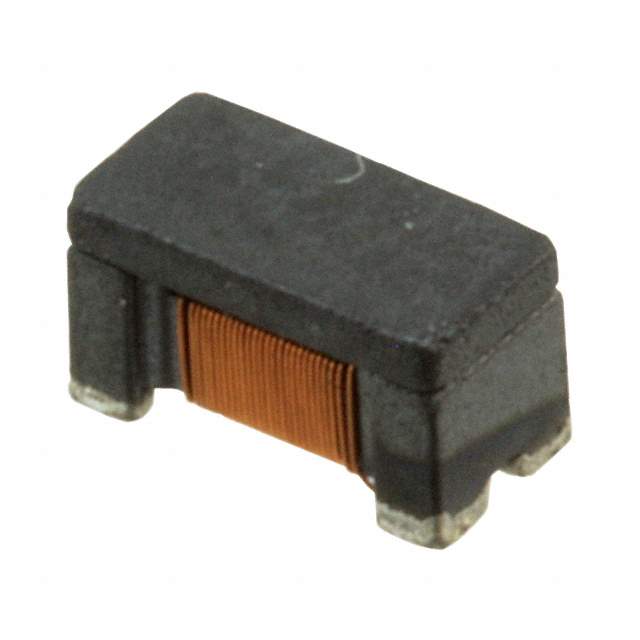

SRF3216-601Y Real Image
Same model may have multiple batches, images only for reference.

SRF3216-601Y

Part No SRF3216-601Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF3216-601Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF3216
Package Tape & Reel
Number of Lines 2
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 800mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) 0.087" (2.20mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF3216
Other Names -SRF3216-601YTR,SRF3216-601Y,SRF3216601Y,SRF3216-601YCT,SRF3216-601YTR,-SRF3216-601YCT,-SRF3216-601Y,SRF3216-601YDKR,-SRF3216-601Y
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277120-SRF3216-601Y
Ultra Librarian 3D Model Ultra Librarian SRF3216-601Y CAD Model

Description

The Bourns Inc. SRF3216-601Y is a common mode choke filter that is designed to provide high performance and durability.

  • Package: Tape and reel
  • Voltage Rating: 50V
  • Maximum Current Rating: 300mA
  • DC Resistance: 800mOhm
  • Impedance: 600 Ohms @ 100 MHz
