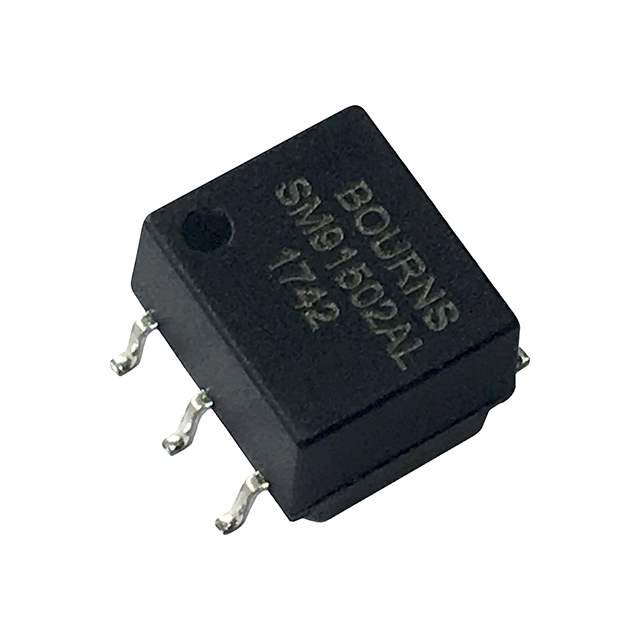

SM91502ALE Real Image
Same model may have multiple batches, images only for reference.

SM91502ALE

Part No SM91502ALE
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description BMS XFORMER 1-CH 1000V AECQ +125 / 150µH Pulse Transformer 1CT:1CT Surface Mount
Datasheet
SM91502ALE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series Automotive, AEC-Q200, SM
Package Tape & Reel
Inductance 150µH
Mounting SMD (SMT)
Dimension 0.300" L x 0.265" W (7.62mm x 6.73mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 125°C
Base Product Number SM9150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names SM91502ALETR,SM91502ALEDKR,SM91502ALECT
Standard Package 800
Win Source Part Number 1226838-SM91502ALE
Ultra Librarian 3D Model Ultra Librarian SM91502ALE CAD Model

Description

Bourns Inc. presents a pulse transformer with a tape and reel package.

  • Series: Automotive, AEC-Q200, SM
  • Temperature Range: -40°C to 125°C
  • Inductance: 150µH
  • Height: 0.225 inches
  • Dimension: 0.300 inches x 0.265 inches
  • Popularity: High
  • Supply and Demand Status: Sufficient
