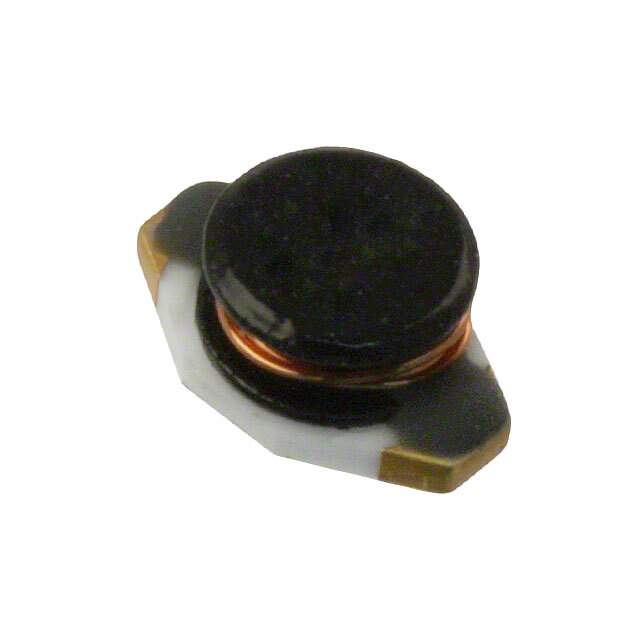

SDR6603-220M Real Image
Same model may have multiple batches, images only for reference.

SDR6603-220M

Part No SDR6603-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 800MA 370 MOHM / SDR6603 Series - SMD Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 800mA
Current - Saturation 700mA
Shielding Unshielded
DC Resistance (DCR) 370mOhm Max
Q at Freq 16 at 2.52MHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Maximum) 0.115" (2.92mm)
Part Number Series SDR6603
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810707-SDR6603-220M
Ultra Librarian 3D Model Ultra Librarian SDR6603-220M CAD Model

Description

The 810707-SDR6603-220M is a wirewound inductor from Bourns Inc..

  • Shielding: Unshielded
  • Inductance: 22μH
  • Q @ Freq: 16 @ 2.52MHz
  • Frequency Self-Resonant: 20MHz
  • Mounting Style: SMD
  • Current Rating: 800mA
  • DC Resistance (DCR): 370mOhm Max
  • Temperature Range: -40°C ~ 125°C
