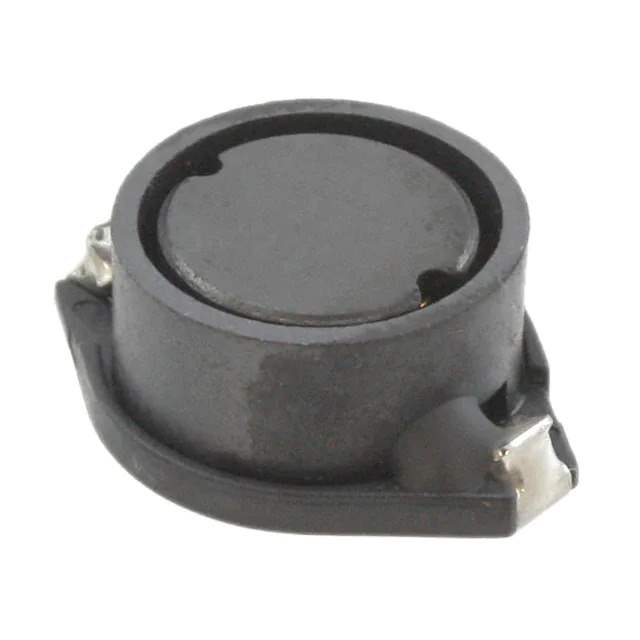

SRR1806-471M Real Image
Same model may have multiple batches, images only for reference.

SRR1806-471M

Part No SRR1806-471M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 470UH 640MA 1 OHM SMD
Datasheet
SRR1806-471M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SRR1806
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±20%
Current Rating (Amps) 640 mA
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 1Ohm
Q @ Freq 27 @ 796kHz
Frequency - Self Resonant 2.4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.280" (7.10mm)
Base Product Number SRR1806
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 742015-SRR1806-471M
Ultra Librarian 3D Model Ultra Librarian SRR1806-471M CAD Model

Description

The SRR1806-471M is a shielded fixed inductor from the SRR1806 series, featuring a drum core and wirewound construction.

  • Inductance: 470µH
  • DC Resistance: 1Ohm
  • Size: 0.720" L x 0.551" W (18.30mm x 14.00mm), Height 0.280" (7.10mm)
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Manufacturer: Bourns Inc.
  • Q Value: 27 @ 796kHz
  • Self-Resonant Frequency: 2.4MHz
  • REACH Compliance: Unaffected
  • Maximum Current: 640mA
  • Status: Active
  • California Prop 65: Warning
