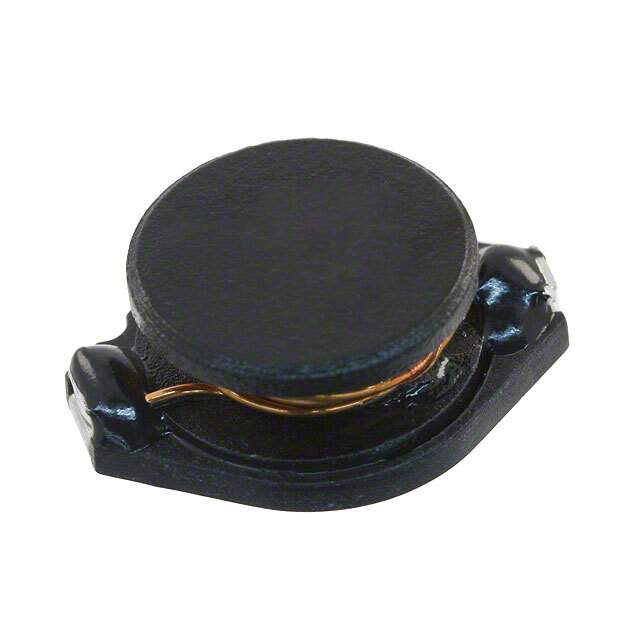

SDR1806-220ML Real Image
Same model may have multiple batches, images only for reference.

SDR1806-220ML

Part No SDR1806-220ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SMD Power Inductors
Datasheet
SDR1806-220ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SDR1806
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 3.6A
Current - Saturation 6.7A
Shielding Unshielded
DC Resistance (DCR) 45 mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 13MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Maximum) 0.272" (6.90mm)
Win Source Part Number 1247494-SDR1806-220ML
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Family Name SDR1806
Introduction Date December 16, 2002
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SDR1806-220ML CAD Model

Description

The Bourns Inc. SDR1806-220ML is a wirewound inductor with a current rating of 3.6A and an inductance of 22μH.

  • Win Source Part Number: 1247494-SDR1806-220ML
  • Package type: nonstandard
  • Tolerance: ±20%
  • Q @ Freq: 22 @ 2.52MHz
  • Frequency self-resonant: 13MHz
  • Family: SDR1806
  • Category: inductors, coils, and chokes
  • DCR: 45 mOhm Max
  • Manufacturer homepage: www.bourns.com
