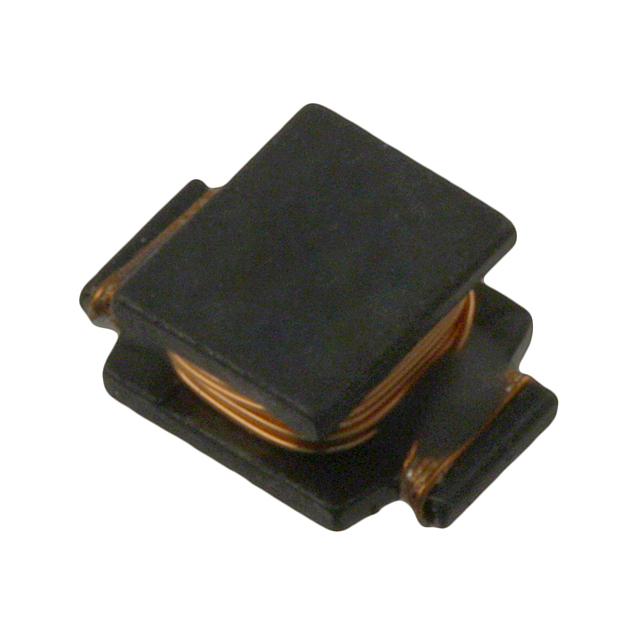

Same model may have multiple batches, images only for reference.
SDR1806-100ML Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SDR1806-100ML

Part No SDR1806-100ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 5.3A 25 MOHM SMD
Datasheet
SDR1806-100ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 5.3 A
Current - Saturation (Isat) 10A
Shielding Unshielded
DC Resistance (DCR) 25mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1533233-SDR1806-100ML
Ultra Librarian 3D Model Ultra Librarian SDR1806-100ML CAD Model

Description

N
