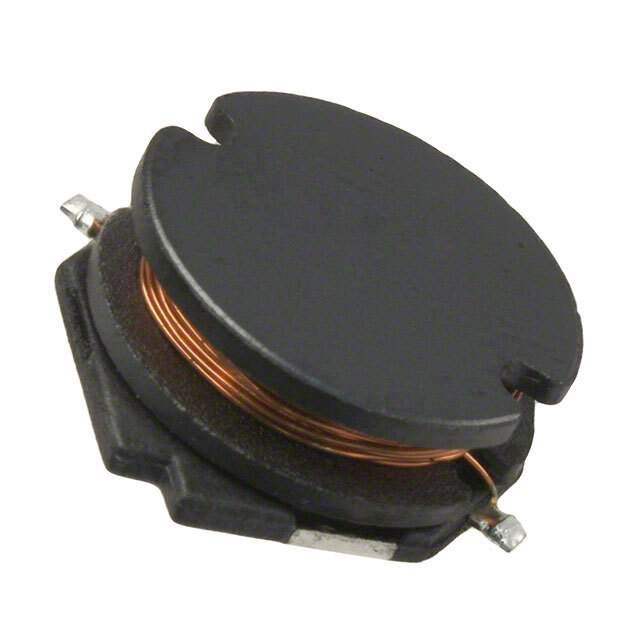

Same model may have multiple batches, images only for reference.

SDR1305-330M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDR1305-330M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 33UH 2.5A 85 MOHM SMD / 33 µH Unshielded Drum Core, Wirewound Inductor 2.5 A 85mOhm Max Nonstandard
Datasheet	SDR1305-330M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1305
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	2.5 A
Current - Saturation (Isat)	2.6A
Shielding	Unshielded
DC Resistance (DCR)	85mOhm Max
Q @ Freq	23 @ 2.52MHz
Frequency - Self Resonant	16MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max)	0.201" (5.10mm)
Base Product Number	SDR1305
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	118-SDR1305-330MTR,SDR1305-330M-ND,118-SDR1305-330MDKR,118-SDR1305-330MCT
Standard Package	600
Win Source Part Number	1017273-SDR1305-330M
Ultra Librarian 3D Model	Ultra Librarian SDR1305-330M CAD Model

Alternative Products

Description

The SDR1305-330M is a drum core, wirewound inductor that is unshielded with a ferrite core material.

Inductance: 33 microhenries
Tolerance: ±20%
Maximum DC Resistance: 85 milliohms
Q @ Freq: 23 @ 2.52MHz
Frequency Self-Resonant: 16MHz
Package/Case: Nonstandard
Height Seated (Max): 0.201 inches (5.10mm)
Current Rating: 2.5A
Applications: Power Supplies, DC-DC Converters, and Filtering Circuits
