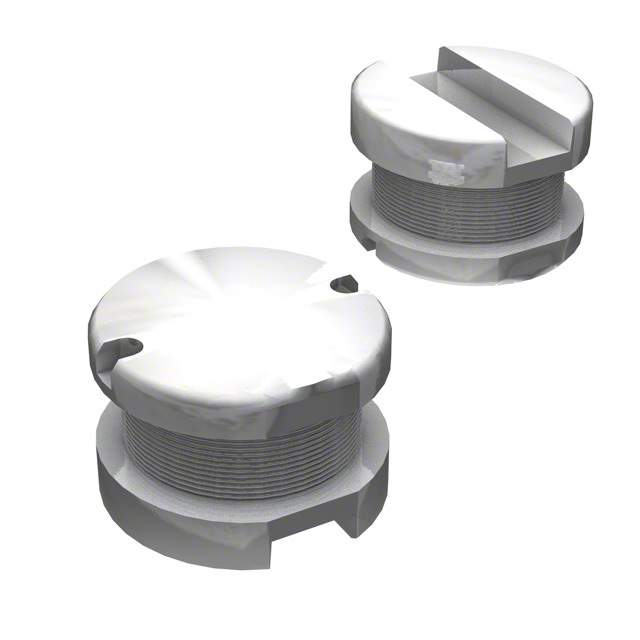

SDR0805-3R3ML Real Image
Same model may have multiple batches, images only for reference.

SDR0805-3R3ML

Part No SDR0805-3R3ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 4.5A 20 MOHM SMD / 3.3 µH Unshielded Drum Core, Wirewound Inductor 4.5 A 20mOhm Max Nonstandard
Datasheet
SDR0805-3R3ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 6.3A
Shielding Unshielded
DC Resistance (DCR) 20mOhm Max
Q @ Freq 32 @ 7.96MHz
Frequency - Self Resonant 55MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SDR0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR08053R3ML,SDR0805-3R3ML-ND,SDR0805-3R3MLCT,SDR0805-3R3MLTR,SDR0805-3R3MLDKR
Standard Package 1,000
Win Source Part Number 992976-SDR0805-3R3ML
Ultra Librarian 3D Model Ultra Librarian SDR0805-3R3ML CAD Model

Description

The SDR0805-3R3ML is a drum core, wirewound inductor that is unshielded with a ferrite core material.

  • Inductance: 3.3 microhenries
  • Tolerance: ±20%
  • Maximum DC Resistance: 20 milliohms
  • Q @ Freq: 32 @ 7.96MHz
  • Frequency Self-Resonant: 55MHz
  • Package: Nonstandard package/case
  • Height (Max): 0.209 inches (5.30mm)
  • Applications: Power supplies, DC-DC converters, and filtering circuits
  • Alternative Parts: SDR08053R3ML, SDR0805-3R3ML-ND, SDR0805-3R3MLCT, SDR0805-3R3MLTR, and SDR0805-3R3MLDKR
