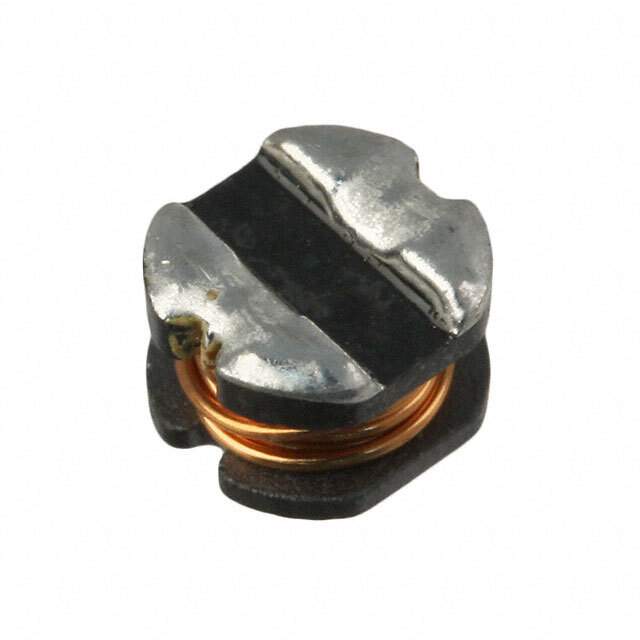

SDR0403-100ML Real Image
Same model may have multiple batches, images only for reference.

SDR0403-100ML

Part No SDR0403-100ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SMD Power Inductors
Datasheet
SDR0403-100ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SDR0403
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 1.15A
Current - Saturation 1.7A
Shielding Unshielded
DC Resistance (DCR) 180 mOhm Max
Q @ Freq 28 @ 2.52MHz
Frequency - Self Resonant 33MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Size 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Maximum) 0.126" (3.20mm)
Win Source Part Number 1247463-SDR0403-100ML
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SDR0403
Introduction Date October 23, 2001
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SDR0403-100ML CAD Model

Description

The Bourns Inc. SDR0403-100ML is a wirewound unshielded inductor that comes in a reel packaging.

  • Inductance: 10μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Rating: 1.15A
  • Self-Resonant Frequency: 33MHz
  • Series: SDR0403
  • DC Resistance: 180 mOhm max
  • Operating Temperature Range: -40°C to 125°C
  • Ideal for: Use in various applications such as inductors, coils, and chokes
  • Height: 0.126" (3.20mm)
  • Size: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • Supply: Limited
  • Popularity: Medium
