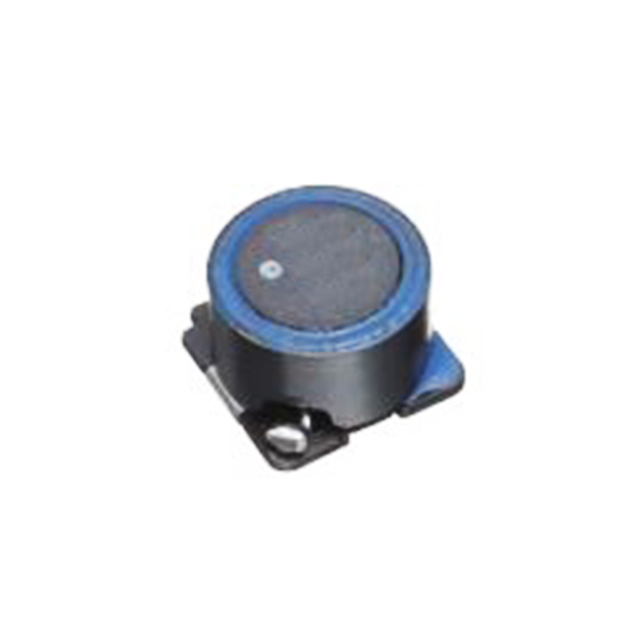

Same model may have multiple batches, images only for reference.
SDE0805A-221K Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SDE0805A-221K

Part No SDE0805A-221K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 800MA 960MOHM SM
Datasheet
SDE0805A-221K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 600mA
Shielding Unshielded
DC Resistance (DCR) 960mOhm Max
Frequency - Self Resonant 6MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1533191-SDE0805A-221K
Ultra Librarian 3D Model Ultra Librarian SDE0805A-221K CAD Model

Description
