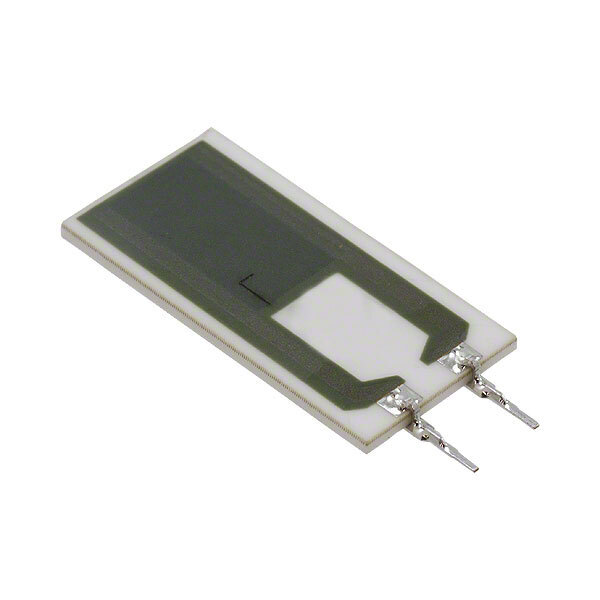

Same model may have multiple batches, images only for reference.
PWR220T-20-R100F Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PWR220T-20-R100F

Part No PWR220T-20-R100F
Manufacturer Bourns Inc.
Catalog Through Hole Resistors
Description RES 0.1 OHM 1% 20W TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 20W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package TO-220-2, Variant
Supplier Device Package TO-220-2
Size / Dimension 0.398" L x 0.157" W (10.10mm x 4.00mm)
Height - Seated (Max) 0.575" (14.60mm)
Number of Terminations 2
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1582418-PWR220T-20-R100F
Ultra Librarian 3D Model Ultra Librarian PWR220T-20-R100F CAD Model
