Same model may have multiple batches, images only for reference.

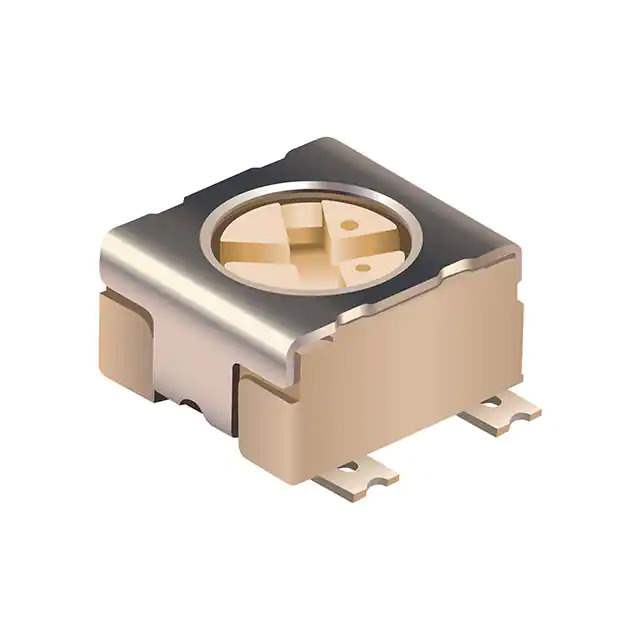

PVG3G500C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG3G500C01R00

Part No PVG3G500C01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50 OHM 0.25W GW TOP ADJ
Datasheet
PVG3G500C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series PVG3
Package Tape & Reel
Product Status Active
Resistance 50 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±150ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm)
Base Product Number PVG3G
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 284432-PVG3G500C01R00
Ultra Librarian 3D Model Ultra Librarian PVG3G500C01R00 CAD Model

Description

The PVG3G500C01R00 is a high-quality trimmer potentiometer designed for precise adjustment and control of resistance.

  • Resistance: 50 Ohms
  • Power Rating: 0.25W
  • Adjustment: Top adjustment
  • Resistive Material: Cermet
  • Tolerance: ±20%
  • Temperature Coefficient: ±150ppm/°C
  • Mounting: Surface mount
  • Package: Rectangular, 0.142" x 0.134" (3.60mm x 3.40mm)
  • Packaging: Tape & reel, 1,000 pcs
  • Manufacturer: Bourns Inc.
  • Product Status: Active
