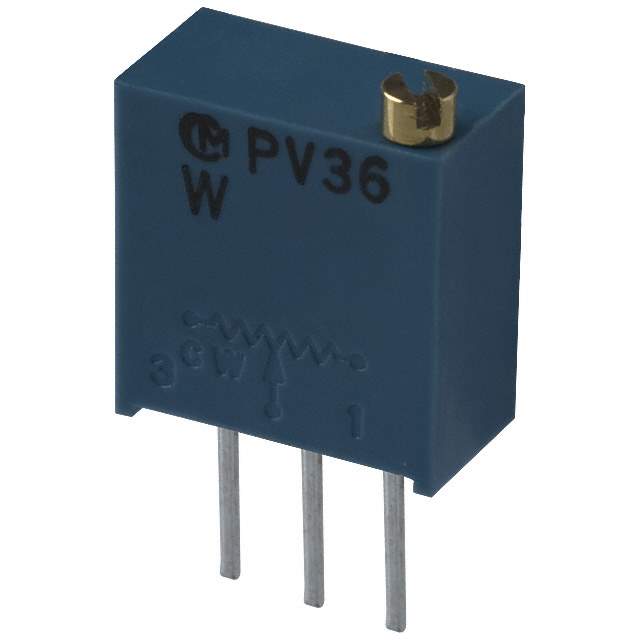

Same model may have multiple batches, images only for reference.

PV36W104C01B00

Name: PV36W104C01B00
Brand: Bourns Inc.
SKU: 1215103
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PV36W104C01B00
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 100K OHM 0.5W PC PIN TOP / 100 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
Datasheet	PV36W104C01B00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	PV36
Package	Tube
Resistance	100 kOhms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	25
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Dimension	Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm)
Base Product Number	PV36W
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	490-2876
Standard Package	100
Win Source Part Number	1215103-PV36W104C01B00
Ultra Librarian 3D Model	Ultra Librarian PV36W104C01B00 CAD Model

Alternative Products

Description

The Bourns Inc. PV36W104C01B00 is a trimmer potentiometer. The series is PV36 and the termination style is PC Pins.

Series: PV36
Termination Style: PC Pins
Package: Tube
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Power (Watts): 0.5W, 1/2W
Number of Turns: 25
Adjustment Type: Top Adjustment
Resistive Material: Cermet
Resistance: 100 kOhms
Mounting Type: Through Hole
Dimension: Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm)
