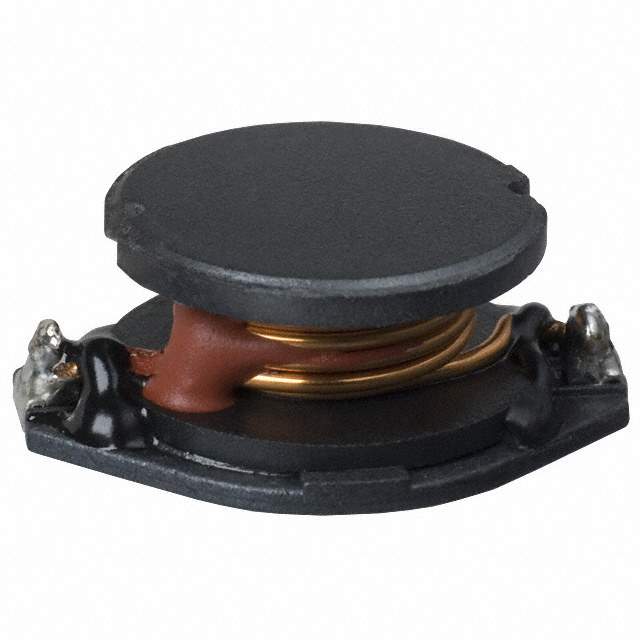

PM5022-100M-RC Real Image1 PM5022-100M-RC Real Image2
Same model may have multiple batches, images only for reference.
PM5022-100M-RC Real Image1 PM5022-100M-RC Real Image2
PM5022-100M-RC Real Image1 PM5022-100M-RC Real Image2
Same model may have multiple batches, images only for reference.

PM5022-100M-RC

Part No PM5022-100M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 5.3A 25 MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 5.3 A 25mOhm Nonstandard
Datasheet
PM5022-100M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PM5022
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 5.3 A
Current - Saturation (Isat) 10A
Shielding Unshielded
DC Resistance (DCR) 25mOhm
Q @ Freq 22 @ 25MHz
Frequency - Self Resonant 2.52MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Product Number PM5022
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Standard Package 250 pcs
Win Source Part Number 1383188-PM5022-100M-RC
Ultra Librarian 3D Model Ultra Librarian PM5022-100M-RC CAD Model

Description

The PM5022-100M-RC is a drum core, wirewound inductor from Bourns Inc. It is part of the PM5022 series and is designed for surface mount applications.

  • Manufacturer: Bourns Inc.
  • Series: PM5022
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Current Rating: 5.3 A
  • DC Resistance: 25 mOhm
  • Material: Ferrite
  • Self-Resonant Frequency: 2.52 MHz
  • Operating Temperature: -40°C to 125°C
  • Size: 0.720" L x 0.551" W (18.30mm x 14.00mm)
  • Seated Height: 0.272" (6.90mm)
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Packaging: Tape & Reel
