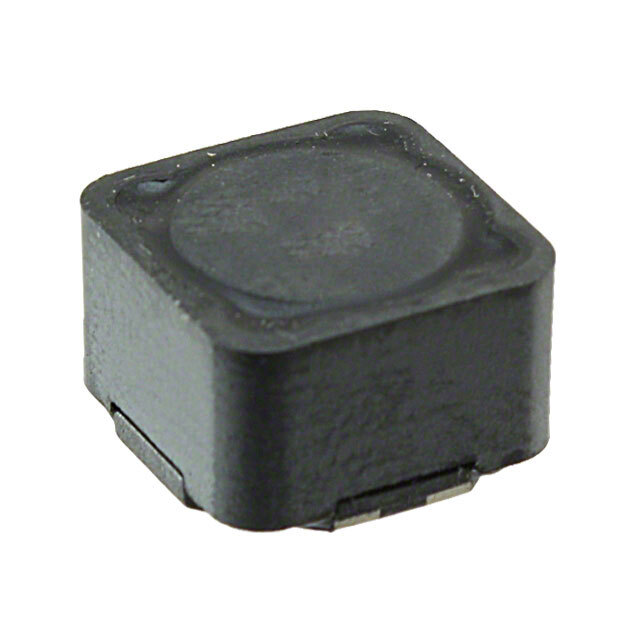

Same model may have multiple batches, images only for reference.
PM3604-50-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PM3604-50-RC

Part No PM3604-50-RC
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 50UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Coils 2
Inductance - Connected In Parallel 50 µH
Inductance - Connected In Series 200 µH
Tolerance ±20%
Current Rating - Parallel 1.28 A
Current Rating - Series 640 mA
DC Resistance (DCR) - Parallel 120mOhm Max
DC Resistance (DCR) - Series 480mOhm Max
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height 0.265\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530722-PM3604-50-RC
Ultra Librarian 3D Model Ultra Librarian PM3604-50-RC CAD Model
