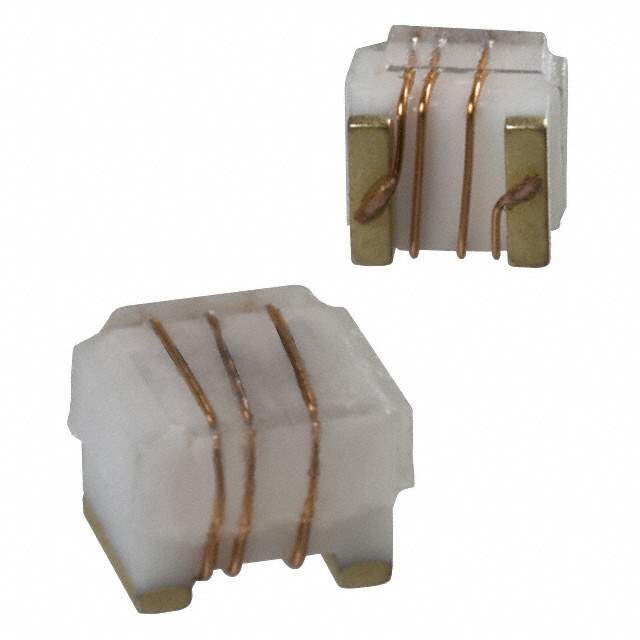

PM1008-47NM-RC Real Image
Same model may have multiple batches, images only for reference.

PM1008-47NM-RC

Part No PM1008-47NM-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47NH 600MA 100MOHM SMD / 47 nH Unshielded Drum Core, Wirewound Inductor 600 mA 100mOhm 1008 (2520 Metric)
Datasheet
PM1008-47NM-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PM1008
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 47 nH
Tolerance ±20%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 100mOhm
Q @ Freq 60 @ 350MHz
Frequency - Self Resonant 1.5GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number PM1008
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1085937-PM1008-47NM-RC
Ultra Librarian 3D Model Ultra Librarian PM1008-47NM-RC CAD Model

Description

The Bourns PM1008-47NM-RC is a drum core, wirewound inductor with an inductance of 47nH.

  • Tolerance: ±20%
  • DC resistance (DCR): 100mOhm
  • Shielding: unshielded
  • Q @ Freq: 60 @ 350MHz
  • Package: tape and reel (TR)
  • Mounting type: SMD (SMT)
  • Dimension: 0.098"L x 0.079"W (2.50mm x 2.00mm)
  • HTSUS: 8504.50.8000
