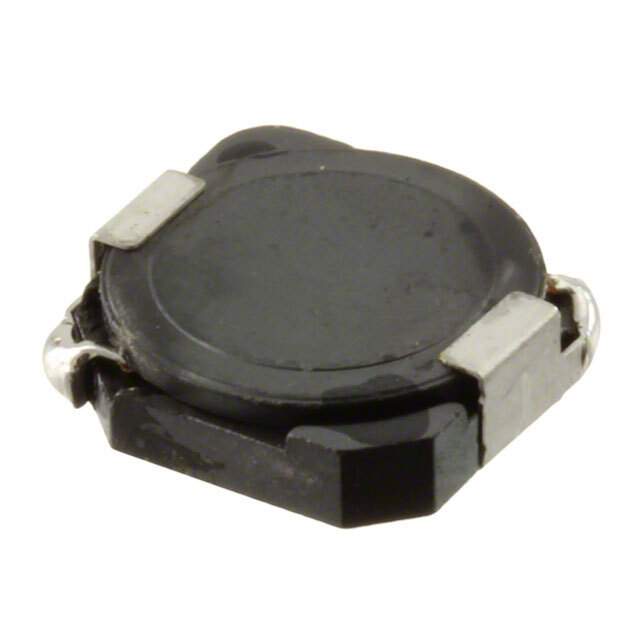

CDRH103RNP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH103RNP-4R7NC

Part No CDRH103RNP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4A 30 MOHM SMD
Datasheet
CDRH103RNP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 4A
Current - Saturation 4.65A
DC Resistance (DCR) 30 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.122" (3.10mm)
Win Source Part Number 050209-CDRH103RNP-4R7NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH103RNP-4R7NC CAD Model

Description

Description

The CDRH103RNP-4R7NC is designed for high-efficiency power conversion applications. It offers excellent inductance stability and superior EMI suppression capabilities, making it a critical component in advanced electronic circuits.

Features and Benefits

  • Excellent inductance stability
  • Superior EMI suppression
  • Optimized for minimal acoustic noise
  • RoHS compliant

Applications

  • Switching regulators
  • Telecommunications
  • Consumer appliances
  • Embedded systems
