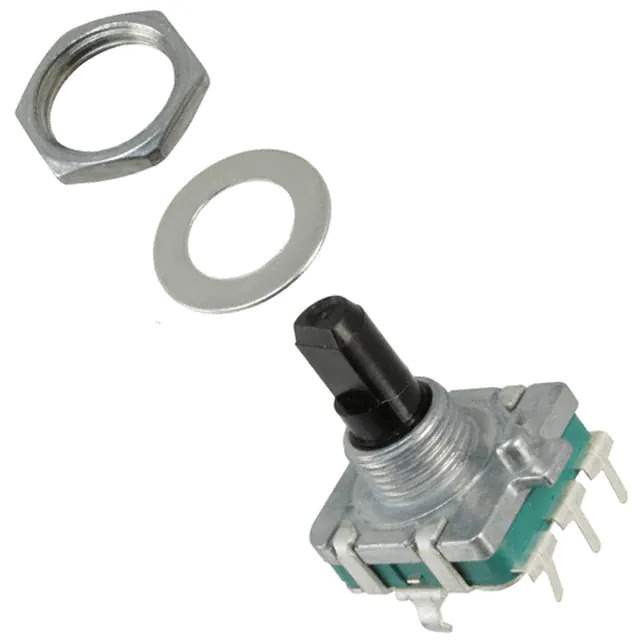

PEC16-4220F-S0024 Real Image
Same model may have multiple batches, images only for reference.

PEC16-4220F-S0024

Part No PEC16-4220F-S0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR
Datasheet
PEC16-4220F-S0024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series PEC16
Package Tray
Product Status Active
Programmable Not Verified
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number PEC16
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
California Prop 65 Warning Information
Win Source Part Number 848396-PEC16-4220F-S0024
Ultra Librarian 3D Model Ultra Librarian PEC16-4220F-S0024 CAD Model

Description

The PEC16-4220F-S0024 is an incremental encoder from Bourns Inc.

  • Series: PEC16
  • Application: Sensors and Transducers
  • Orientation: Vertical
  • Actuator: 6mm Diameter Flatted End
  • Output: Quadrature
  • Resolution: 24 Pulses Per Revolution
  • Switch: Built-in
  • Detent: Yes
  • Encoder Type: Mechanical
  • Programmable: No
  • Mounting: PC Pins
  • Packaging: Tray
  • REACH: Unaffected
  • California Prop 65: No Warning Required
  • Rotational Life: 100,000 cycles minimum
