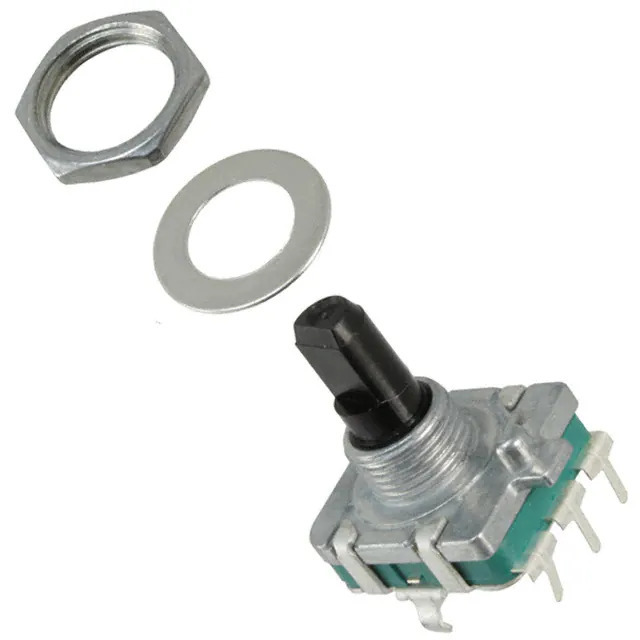

PEC16-4120F-N0012 Bourns Inc.
Same model may have multiple batches, images only for reference.

PEC16-4120F-N0012

Part No PEC16-4120F-N0012
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 12PPR
Datasheet
PEC16-4120F-N0012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series PEC16
Package Bulk
Product Status Active
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Voltage - Supply -
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch No
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number PEC16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1376092-PEC16-4120F-N0012
Ultra Librarian 3D Model Ultra Librarian PEC16-4120F-N0012 CAD Model

Description

The Bourns Inc. PEC16 series is a mechanical encoder with a quadrature (incremental) output type. It has a 6mm diameter flatted end actuator and is designed for vertical orientation.

  • Output Type: Quadrature (Incremental)
  • Actuator: 6mm Diameter Flatted End
  • Orientation: Vertical
  • Pulse Per Revolution: 12
  • Detent Mechanism: Yes
  • Rotational Life: 100K cycles minimum
  • Mounting: Panel and PCB Through-Hole
  • Package: Bulk
  • Termination: PC Pins
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
