Same model may have multiple batches, images only for reference.

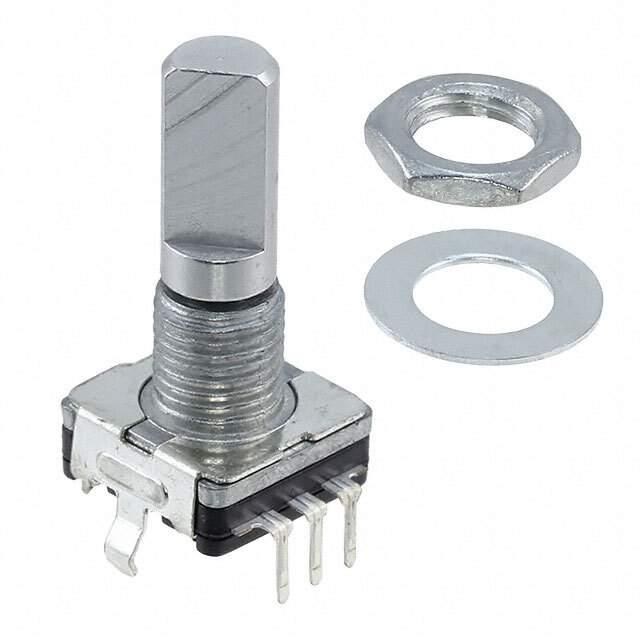

PEC11L-4120F-S0020 Real Image
Same model may have multiple batches, images only for reference.

PEC11L-4120F-S0020

Part No PEC11L-4120F-S0020
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 20PPR  /  Rotary Encoder Mechanical 20 Quadrature (Incremental) Vertical
Datasheet
PEC11L-4120F-S0020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Bourns Inc.
Series PEC11
Package Tray
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 20
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number PEC11L
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Standard Package 75
Win Source Part Number 1009119-PEC11L-4120F-S0020
Ultra Librarian 3D Model Ultra Librarian PEC11L-4120F-S0020 CAD Model

Description

The PEC11L-4120F-S0020 is a mechanical encoder from Bourns Inc.

  • Series: PEC11
  • Output Type: quadrature (incremental)
  • Actuator: 6mm dia flatted end
  • Pulses per Revolution: 20
  • Rotational Life: 100K cycles min
  • Features: detent and built-in switch
  • Mounting: panel or PCB through hole
  • MSL Level: not applicable
  • REACH: unaffected
  • HTSUS: 8543.70.4500
