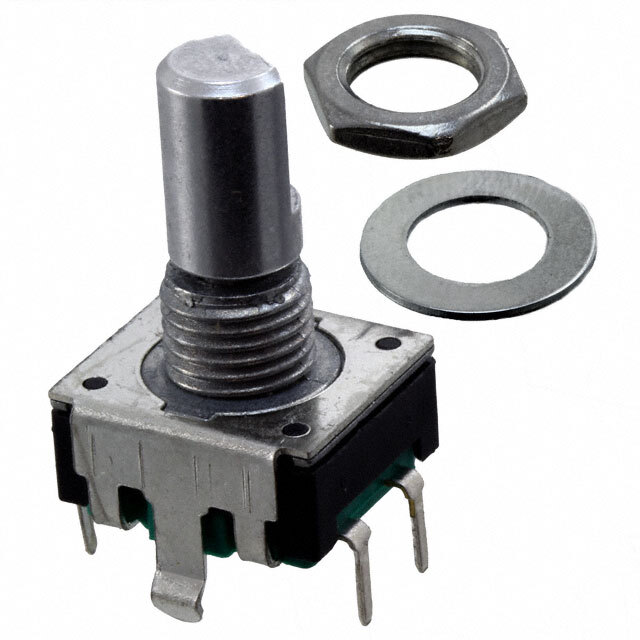

PEC09-2120F-S0012 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PEC09-2120F-S0012

Part No PEC09-2120F-S0012
Manufacturer Bourns Inc.
Catalog Encoders
Description ENCODER MECH QUAD RGH ANG PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Programmable Not Verified
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Right Angle
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1599202-PEC09-2120F-S0012
Ultra Librarian 3D Model Ultra Librarian PEC09-2120F-S0012 CAD Model
