Same model may have multiple batches, images only for reference.

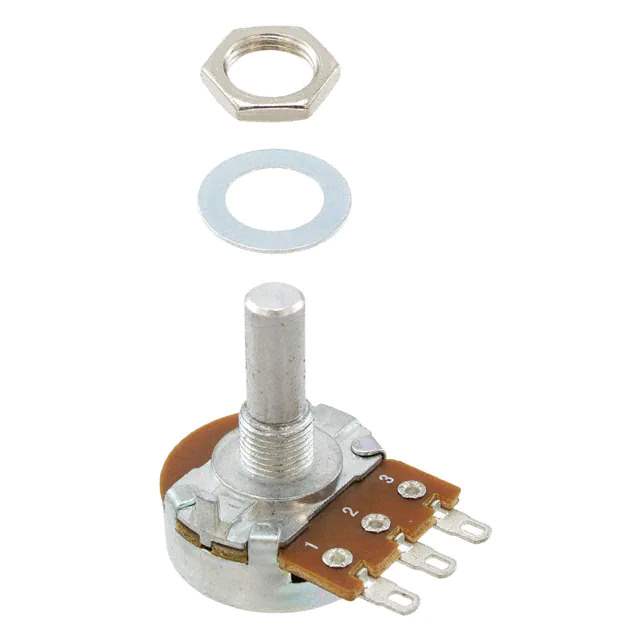

PDB241-E420P-103B0 Real Image
Same model may have multiple batches, images only for reference.

PDB241-E420P-103B0

Part No PDB241-E420P-103B0
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 1/2W CARBON LINEAR / 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.5W, 1/2W Solder Lug
Datasheet
PDB241-E420P-103B0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr Bourns Inc.
Series Pro Audio PDB24
Package Bulk
Product Status Active
Resistance (Ohms) 10k
Tolerance ±20%
Power (Watts) 0.5W, 1/2W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Rotation 300°
Resistive Material Carbon
Termination Style Solder Lug
Actuator Type Round
Actuator Length 0.787" (20.00mm)
Actuator Diameter 0.236" (6.00mm)
Bushing Thread M8 x 0.75
Mounting Type Panel Mount
Size - Body Round - 0.945" Dia (24.00mm)
Base Product Number PDB241
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 888824-PDB241-E420P-103B0
Ultra Librarian 3D Model Ultra Librarian PDB241-E420P-103B0 CAD Model

Description

The PDB241-E420P-103B0 is a rotary potentiometer from Bourns Inc.

  • Series: Pro Audio PDB24
  • Resistance: 10k ohms
  • Power Rating: 0.5W
  • Tolerance: ±20%
  • Taper: Linear
  • Gangs: Single
  • Switch: No
  • Actuator Type: Round
  • Actuator Diameter: 0.236 inches (6.00mm)
  • Actuator Length: 0.787 inches (20.00mm)
  • Rotation Angle: 300°
  • Bushing Thread Size: M8 x 0.75
  • Mounting Type: Panel Mount
  • Package: Bulk
  • Standard Package Quantity: 100 pieces
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • REACH: Unaffected
