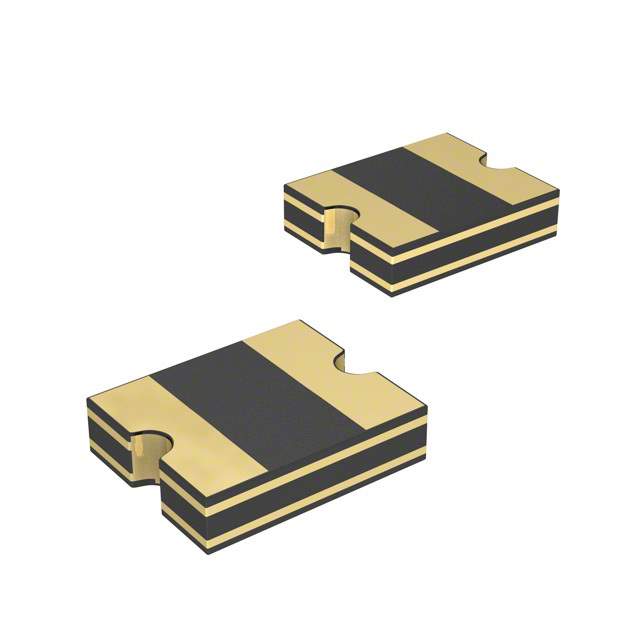

The MF-USMF020 is a resettable fuse, also known as a polymeric positive temperature coefficient (PPTC) resettable fuse, manufactured by Bourns Inc. It's designed to protect electronic circuits from overcurrent conditions. Unlike traditional fuses that blow and need replacement, a PPTC fuse increases its resistance dramatically during an overcurrent event, limiting the current flow. Once the fault is removed, the fuse cools down and returns to its low-resistance state, allowing normal circuit operation to resume.

Applications

• USB Ports: Protects USB ports on computers, laptops, and other devices from overcurrent damage caused by faulty USB devices or short circuits.
• Portable Electronics: Used in smartphones, tablets, and other portable devices to protect sensitive components from overcurrent conditions due to battery faults or charging issues.
• Game Consoles: Protects game consoles from damage caused by overcurrent events.
• Hard Drives and Solid State Drives (SSDs): Protects data storage devices from overcurrent surges that can corrupt data or damage the drive.
• Printers and Scanners: Protects the internal circuitry of printers and scanners from overcurrent faults.

Features

• Resettable: Automatically resets after the overcurrent condition is removed, eliminating the need for manual replacement.
• Surface Mount Package: Designed for surface mount assembly, making it easy to integrate into modern electronic devices.
• Compact Size: Small footprint allows for use in space-constrained applications.
• Fast Trip Time: Responds quickly to overcurrent events, limiting the amount of energy that reaches the protected circuit.
• Low Resistance: Offers low normal operating resistance, minimizing voltage drop and power dissipation.

Benefits

• Enhanced Circuit Protection: Provides reliable protection against overcurrent events, preventing damage to sensitive components.
• Reduced Downtime: Eliminates the need to replace blown fuses, reducing downtime and maintenance costs.
• Improved Reliability: Resettable nature improves the overall reliability of the protected circuit.
• Simplified Design: Easy to integrate into circuit designs with standard surface mount assembly techniques.
• Cost-Effective: Reduces the cost of ownership compared to traditional fuses by eliminating the need for replacements.

Additional Details

The MF-USMF020 has a hold current of 0.2 Amps and a trip current of around 0.4 Amps. The maximum voltage rating is typically 6V to 30V. The typical trip time at 200% of the hold current is less than 5 seconds. It complies with industry safety standards. The operating temperature range is usually between -40°C to +85°C. It is lead-free and RoHS compliant.
