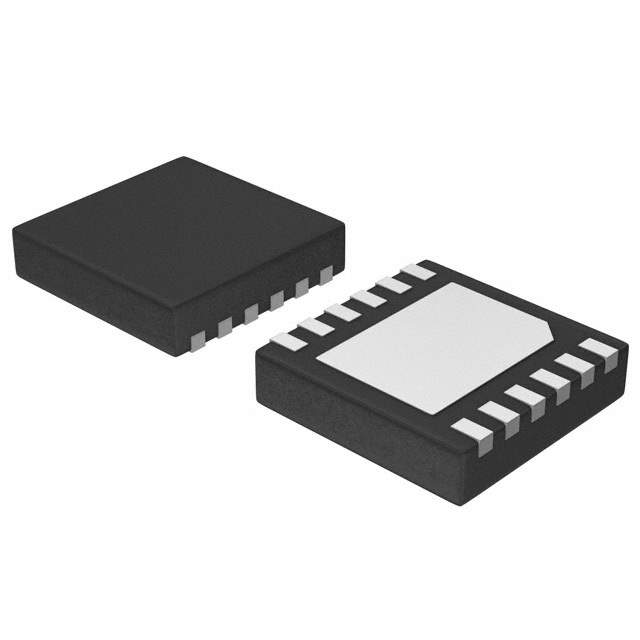

ON Semiconductor CAT3612HV2-T2 LED Driver

The ON Semiconductor CAT3612HV2-T2 is a versatile and efficient LED driver integrated circuit (IC) designed to meet the needs of various lighting applications. It is particularly well-suited for portable devices such as smartphones, tablets, and handheld gaming devices, where power efficiency and compact design are paramount.

The CAT3612HV2-T2 is a high-voltage version in the CAT3612 series, capable of driving up to four LEDs in series with a maximum output voltage of 22V. This feature allows for consistent brightness and color matching across multiple LEDs, which is critical for devices with backlit displays or status indicators.

One of the key advantages of this LED driver is its fractional charge pump, which provides high efficiency across a wide range of input voltages. The device operates from a 3V to 5.5V supply, making it compatible with standard battery technologies used in portable devices. The charge pump requires only a few external components, including small ceramic capacitors, which helps to minimize the overall footprint of the lighting solution.

The CAT3612HV2-T2 also incorporates a built-in 1x/1.5x/2x mode fractional charge pump that maintains efficiency when driving a string of LEDs at varying input voltages. This feature ensures optimal battery life by automatically adjusting the charge pump gain based on the LED forward voltage requirements.

For dimming control, the device offers a 32-step logarithmic brightness control, which can be accessed via a simple one-wire digital interface. This allows for smooth and precise brightness adjustments, enhancing the user experience in applications where variable illumination is necessary.

Safety features of the CAT3612HV2-T2 include over-voltage protection, which guards against conditions that could lead to excessive voltage on the LED pins, and thermal shutdown protection, which prevents damage from overheating.

Overall, the ON Semiconductor CAT3612HV2-T2 is a reliable and power-efficient solution for driving LEDs in compact electronic devices. Its combination of high-voltage support, fractional charge pump efficiency, and user-friendly dimming control makes it an excellent choice for designers looking to enhance the visual appeal and functionality of their products.
