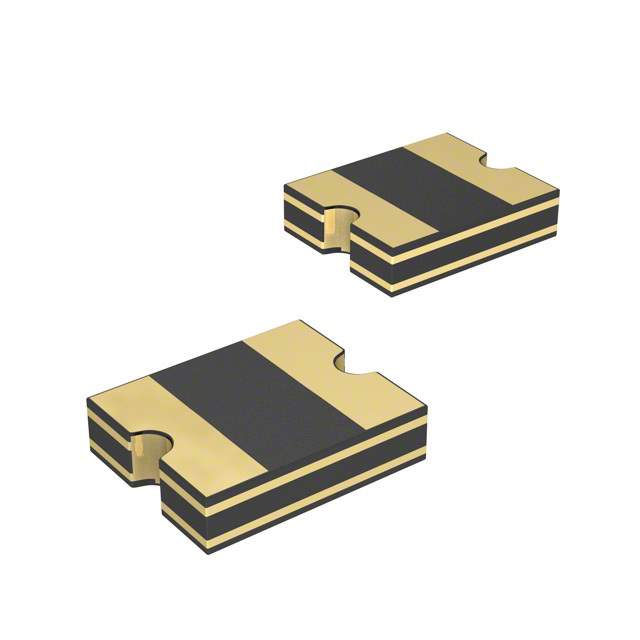

MF-USMF010-2 Real Image MF-USMF010-2 real image
Same model may have multiple batches, images only for reference.
MF-USMF010-2 Real Image MF-USMF010-2 real image
MF-USMF010-2 Real Image MF-USMF010-2 real image
Same model may have multiple batches, images only for reference.

MF-USMF010-2

Part No MF-USMF010-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.1A(hold) 0.3A(trip) 30V 10A 0.6W 0.6s 0.8Ohm SMD Solder Pad 1210 T/R Automotive / FUSE RESETTABLE .10A 30V HLD SMD
Datasheet
MF-USMF010-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 300mA
Time to Trip 600ms
Resistance - Initial (Ri) (Min) 800 mOhm
Resistance - Post Trip (R1) (Max) 15 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003462-MF-USMF010-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive, Communications & Networking, Portable Devices, Multimedia, Consumer Electronics, Automotive
Family Name MF-USMF
Introduction Date May 11, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-USMF010-2 CAD Model

Description

The Bourns Inc. MF-USMF010-2 is a polymeric type circuit protection component with a high popularity in the market.

  • Maximum Voltage: 30V
  • Maximum Current: 10A
  • Approvals: cURus and TUV
  • Rating: AEC-Q200
  • Thickness: 0.033 inches
  • Mounting: Surface Mount
  • Time to Trip: 600ms
  • Current Trip: 300mA
  • Halogen-Free: Yes
  • Estimated EOL Date: 2026
