Same model may have multiple batches, images only for reference.

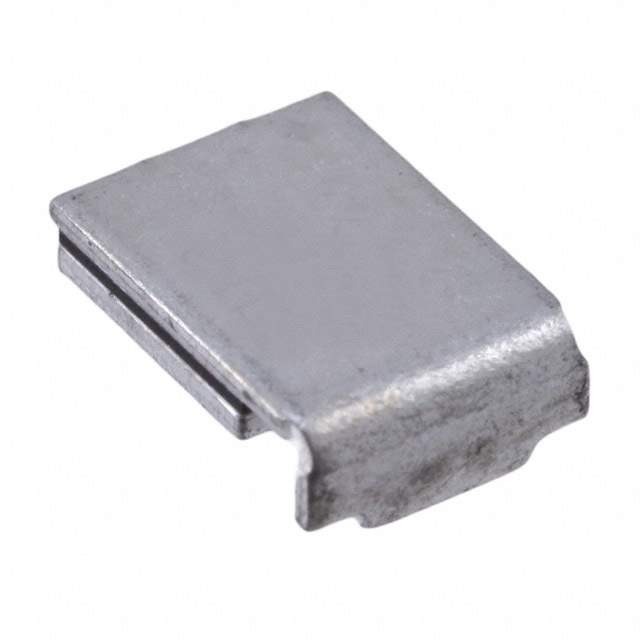

MF-SM200-2 Real Image
Same model may have multiple batches, images only for reference.

MF-SM200-2

Part No MF-SM200-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description MF-SM Series - PTC Resettable Fuses | PTC RESET FUSE 15V 2A 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2A
Current - Trip (It) 4A
Time to Trip 12s
Resistance - Initial (Ri) (Minimum) 45 mOhms
Resistance - Post Trip (R1) (Maximum) 125 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Style SMD
Manufacturer Package 2-SMD
Parts Dimension 0.344" L x 0.264" W (8.75mm x 6.71mm)
Thickness (Maximum) 0.118" (3.00mm)
Approvals cURus, TUV
Family Part Number MF-SM
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1221790-MF-SM200-2
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian MF-SM200-2 CAD Model

Description

The Bourns Inc. MF-SM200-2 is a polymeric type circuit protection product that comes in a reel package.

  • Voltage Rating: 15V
  • Maximum Current Rating: 100A
  • Current Trip (It): 4A
  • Time to Trip: 12s
  • AEC-Q200 Rated: true
  • Resistance Initial (Ri): 45 mOhms
  • Resistance Post Trip (R1): 125 mOhms
  • Suitable for: automotive industry
  • Manufacturer Package: 2-SMD
  • Approvals: cURus and TUV approved
  • Supply and Demand Status: sufficient
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.344" L x 0.264" W (8.75mm x 6.71mm)
