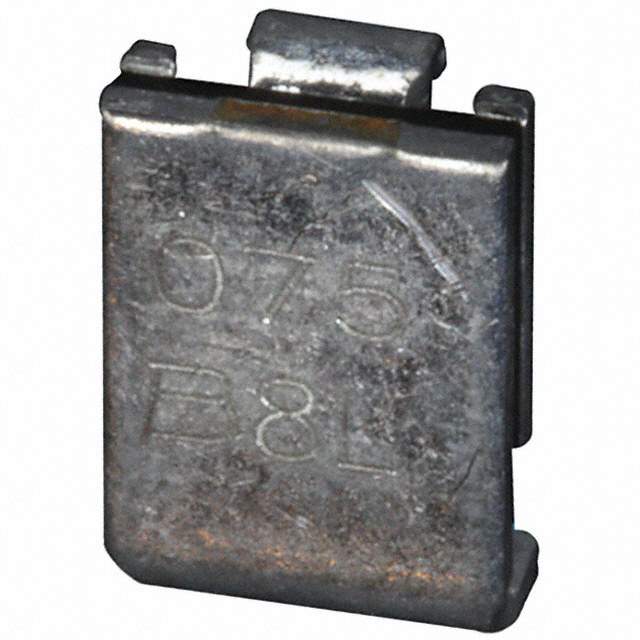

MF-SM075/60-2 Real Image
Same model may have multiple batches, images only for reference.

MF-SM075/60-2

Part No MF-SM075/60-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 750MA 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 60V
Current - Max 10A
Current - Hold (Ih) (Maximum) 750mA
Current - Trip (It) 1.5A
Time to Trip 300ms
Resistance - Initial (Ri) (Minimum) 230 mOhms
Resistance - Post Trip (R1) (Maximum) 1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Style SMD
Manufacturer Package 2-SMD
Parts Dimension 0.287" L x 0.214" W (7.31mm x 5.44mm)
Thickness (Maximum) 0.125" (3.18mm)
Approvals cURus, TUV
Family Part Number MF-SM
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 711194-MF-SM075/60-2
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-SM075/60-2 CAD Model

Description

The Bourns Inc. MF-SM075/60-2 is a polymeric circuit protection device that is designed to protect electronic circuits from overcurrent events.

  • Voltage-Max: 60V
  • Current-Max: 10A
  • Current-Trip (It): 1.5A
  • Time to Trip: 300ms
  • Package: 2-SMD
  • Thickness: 0.125" (3.18mm)
  • Resistance-Initial (Ri): 230 mOhms
  • Resistance-Post Trip (R1): 1 Ohms
  • Mounting: SMD
  • Approvals: cURus and TUV
