Same model may have multiple batches, images only for reference.

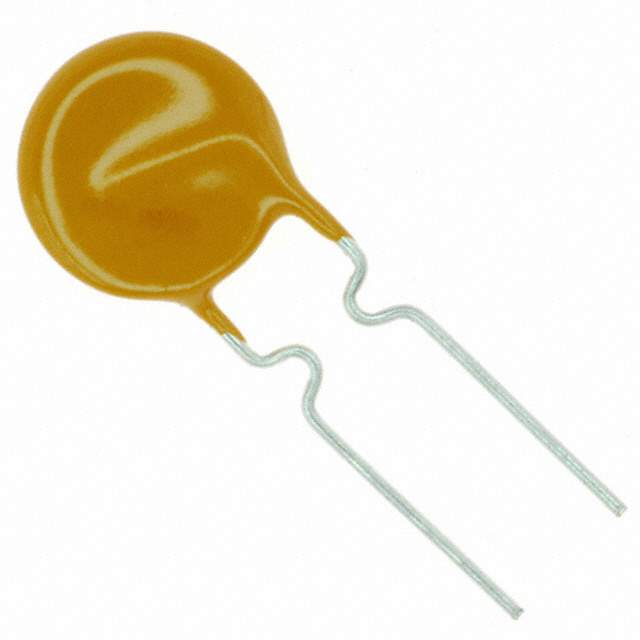

MF-R075 Real Image
Same model may have multiple batches, images only for reference.

MF-R075

Part No MF-R075
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 6.3s
Resistance - Initial (Ri) (Min) 180 mOhm
Resistance - Post Trip (R1) (Max) 600 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.409" Dia x 0.122" W (10.40mm x 3.10mm)
Height - Seated (Max) 0.630" (16.00mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 058457-MF-R075
Ultra Librarian 3D Model Ultra Librarian MF-R075 CAD Model

Description

The MF-R075 is a polymeric type circuit protection product manufactured by Bourns Inc.

  • Approvals: cURus and TUV
  • Height when seated: 0.630 inches or 16.00mm
  • Lead spacing: 0.201 inches or 5.10mm
  • Maximum voltage: 60V
  • Maximum current: 40A
  • Current hold (Ih): 750mA
  • Current trip (It): 1.5A
  • Time to trip: 6.3s
  • Product status: Active
  • Category: Circuit protection
  • Operating temperature range: -40°C to 85°C
  • Dimension: 0.409 inches in diameter and 0.122 inches in width or 10.40mm x 3.10mm
  • Initial resistance (Ri): 180mOhm
  • Post-trip resistance (R1): 600mOhm
  • For more information: Please visit the manufacturer's website
