Same model may have multiple batches, images only for reference.

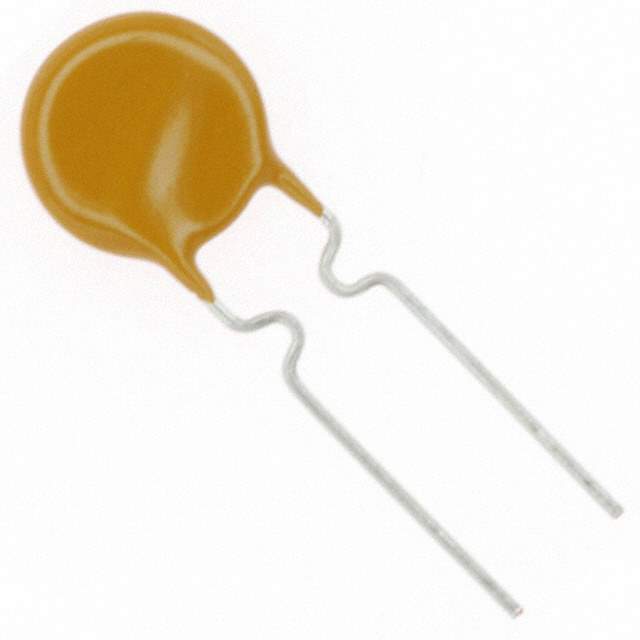

MF-R065 Real Image
Same model may have multiple batches, images only for reference.

MF-R065

Part No MF-R065
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE .65A HOLD
Datasheet
MF-R065 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 650mA
Current - Trip (It) 1.3A
Time to Trip 5.3s
Resistance - Initial (Ri) (Min) 270 mOhm
Resistance - Post Trip (R1) (Max) 720 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.382" Dia x 0.122" W (9.70mm x 3.10mm)
Height - Seated (Max) 0.598" (15.20mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 084215-MF-R065
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MF-R065 CAD Model

Description

The MF-R065 is a polymeric positive temperature coefficient resettable fuse manufactured by Bourns Inc.

  • Supply and Demand Status: Limited
  • Suitable for: Use in various electronic devices such as battery packs, power supplies, and motor drives
  • Voltage Rating: 60V
  • Current Rating: 40A
  • Time to Trip: 5.3s
  • Manufacturer's Homepage: www.bourns.com
