Same model may have multiple batches, images only for reference.

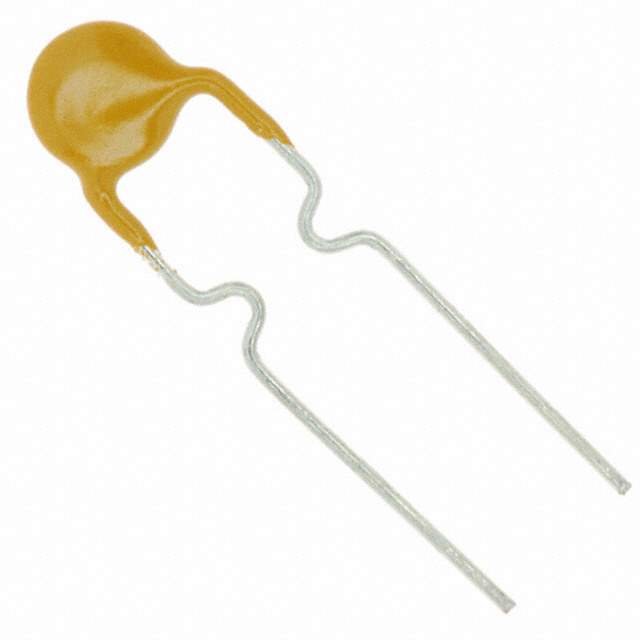

MF-R020-0-D6 Real Image
Same model may have multiple batches, images only for reference.

MF-R020-0-D6

Part No MF-R020-0-D6
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R020-0-D6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Supply and Demand Status Limited
Popularity Medium
Win Source Part Number 761675-MF-R020-0-D6
Approvals cURus, TUV
Lead Spacing 0.201" (5.10mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Dimension 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Package Radial, Disc
Mounting Style Through Hole
Operating Temperature Range -40°C ~ 85°C
Resistance - Post Trip (R1) (Maximum) 4.4 Ohm
Resistance - Initial (Ri) (Minimum) 1.5 Ohm
Time to Trip 2.2s
Current - Trip (It) 400mA
Current - Hold (Ih) (Maximum) 200mA
Current - Max 40A
Voltage - Max 60V
Type Polymeric
Packaging Bulk
Series Multifuse, MF-R
Manufacturer Bourns Inc.
Categories Circuit Protection
Ultra Librarian 3D Model Ultra Librarian MF-R020-0-D6 CAD Model

Description

The product is part of the circuit protection category and is manufactured by Bourns Inc.

  • Type: Polymeric
  • Voltage Max: 60V
  • Current Max: 40A
  • Current Trip: 400mA
  • Time to Trip: 2.2s
  • Operating Temperature Range: -40°C to 85°C
  • Package: Radial disc
  • Lead Spacing: 0.201" (5.10mm)
  • Resistance (Initial): 1.5 Ohm
  • Resistance (Post Trip): 4.4 Ohm
