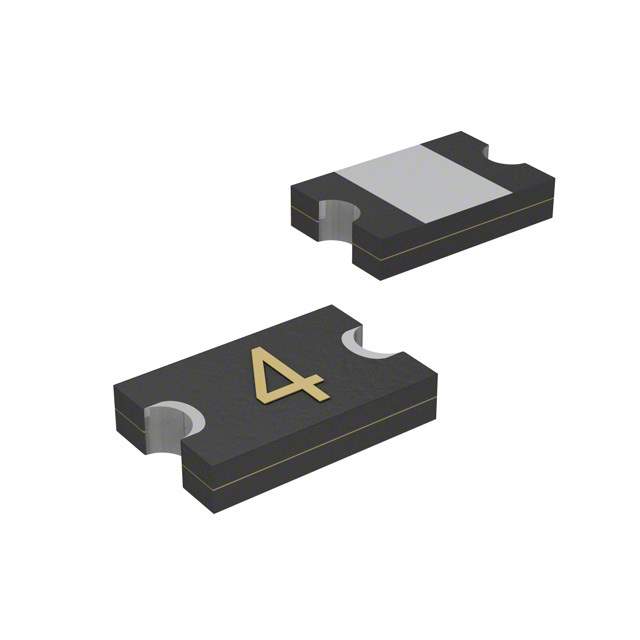

MF-PSMF035X-2 Real Image
Same model may have multiple batches, images only for reference.

MF-PSMF035X-2

Part No MF-PSMF035X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE SMD 0805
Datasheet
MF-PSMF035X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 350mA
Current - Trip (It) 750mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 250 mOhm
Resistance - Post Trip (R1) (Max) 1.2 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.085" L x 0.053" W (2.15mm x 1.35mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003401-MF-PSMF035X-2
Ultra Librarian 3D Model Ultra Librarian MF-PSMF035X-2 CAD Model

Description

The MF-PSMF035X-2 is a polymeric type circuit protection component manufactured by Bourns Inc.

  • Win Source Part Number: 003401
  • Approvals: cURus and TUV
  • Product Status: active
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Commonly used in: electronic circuits that require overcurrent protection
  • Profile: low
  • Easy to mount: on the circuit board
  • Choice: reliable and efficient for overcurrent protection
