Same model may have multiple batches, images only for reference.

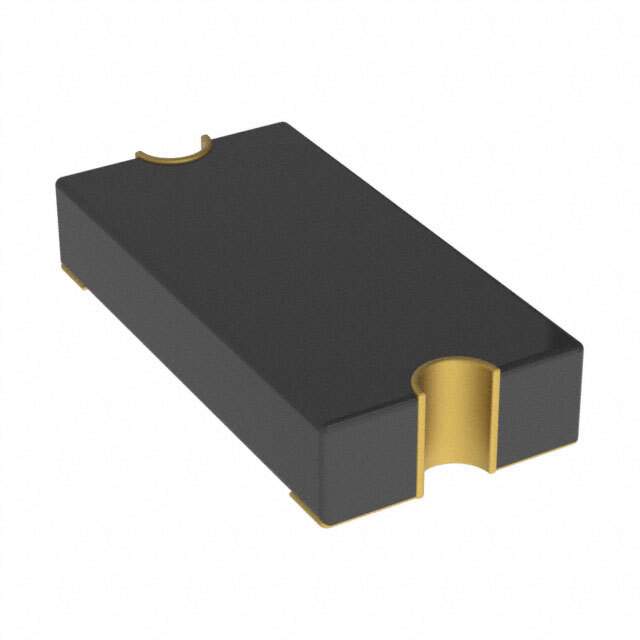

MF-NSMF150-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSMF150-2

Part No MF-NSMF150-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 1.50A 6V 1206
Datasheet
MF-NSMF150-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 1.5A
Current - Trip (It) 3A
Time to Trip 300ms
Resistance - Initial (Ri) (Min) 30 mOhm
Resistance - Post Trip (R1) (Max) 130 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.028" (0.70mm)
Approvals cURus, TUV
Win Source Part Number 023202-MF-NSMF150-2
Ultra Librarian 3D Model Ultra Librarian MF-NSMF150-2 CAD Model

Description

Bourns Inc. presents the MF-NSMF150-2, a polymeric circuit protection component that is ideal for circuit protection applications.

  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Current Hold (Ih): 1.5A
  • Current Trip (It): 3A
  • Time to Trip: 300ms
  • Mounting Technology: SMD (SMT)
  • Packaging: reel - TR
  • Thickness: 0.028 inches (0.70mm)
  • Dimension: 0.126 inches L x 0.063 inches W (3.20mm x 1.60mm)
  • Initial Resistance (Ri): 30 mOhm
  • Post-Trip Resistance (R1): 130 mOhm
  • Product Status: active
  • Popularity: high
